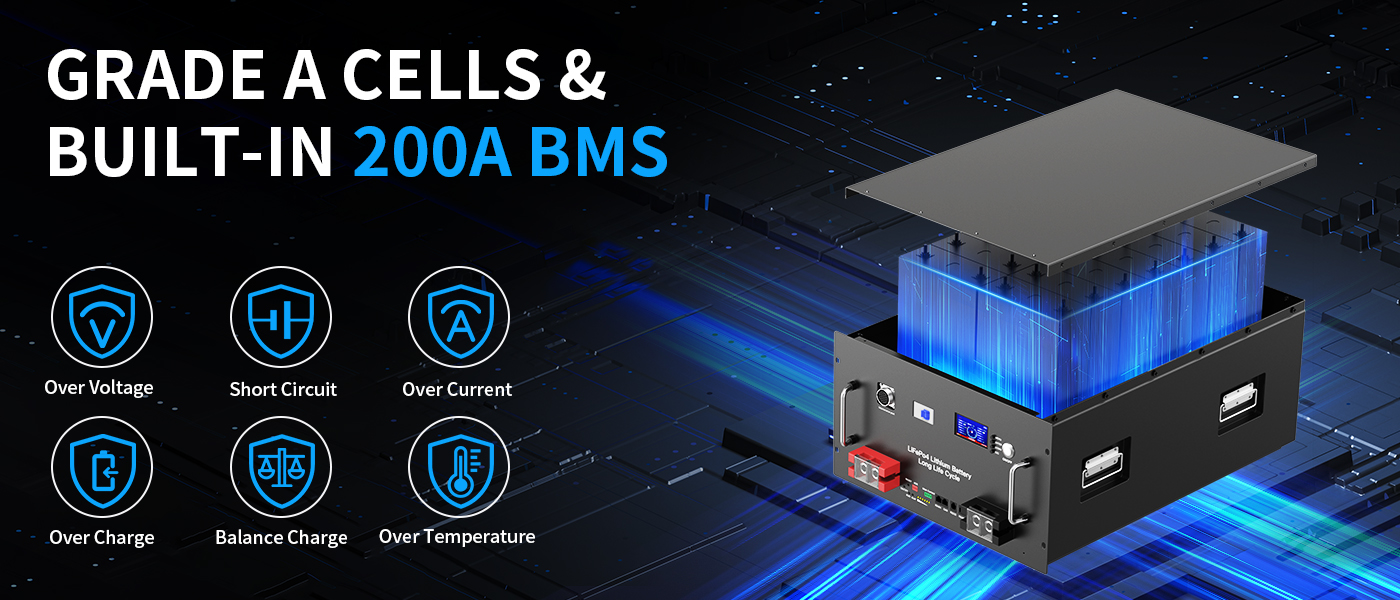

Intelligent BMS Protection Functions
The battery pack is equipped with a high-performance Battery Management System (BMS) and protection circuit module (PCM), ensuring safe and reliable operation during charging and discharging.
The intelligent BMS provides multiple safety protections:
Key Selling Points for Website
🔋 Intelligent Battery Protection
Advanced BMS technology provides multi-layer protection against overcharge, over-discharge, overcurrent, and temperature abnormalities.

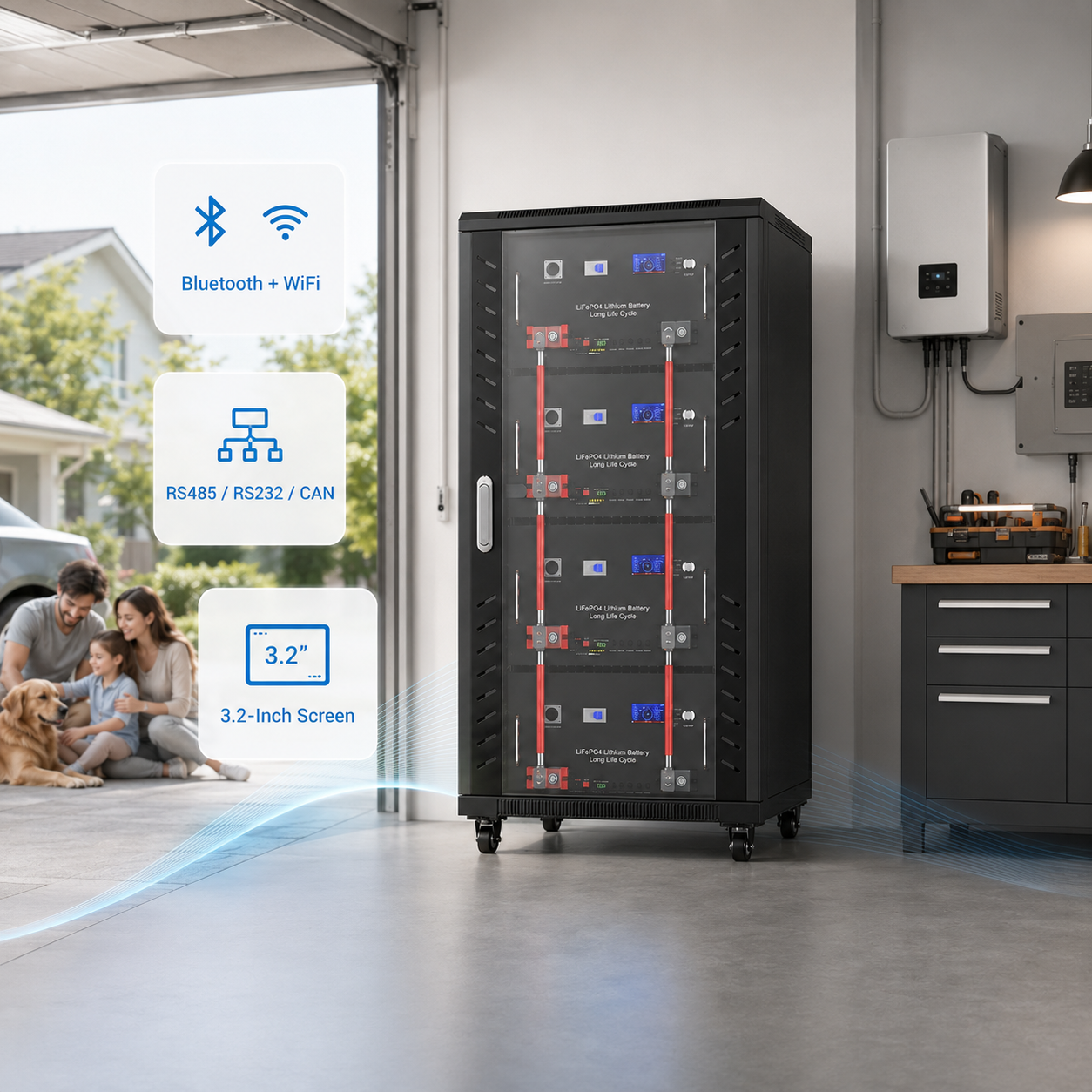

📡 Smart Communication
Supports RS485, RS232, and CAN communication protocols for seamless connection with solar inverters and energy management systems.

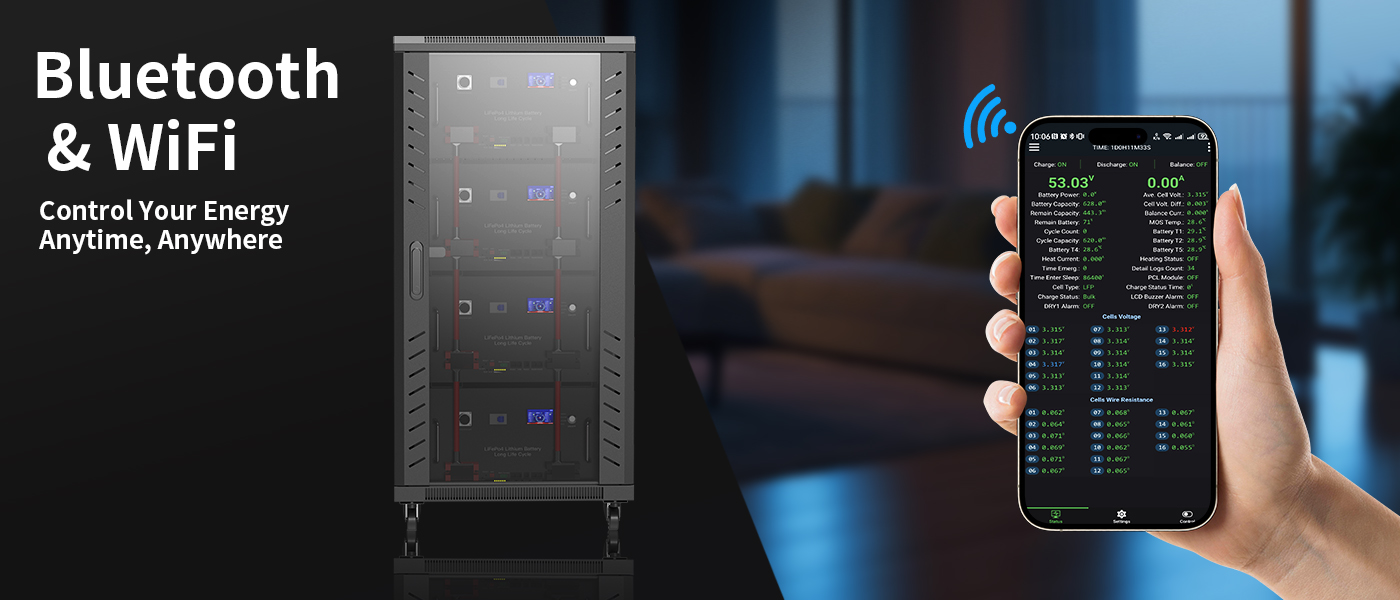

📱 Real-Time Monitoring
LCD display, Bluetooth, and WiFi options allow users to easily monitor battery status anytime.
⚡ High Power Capability

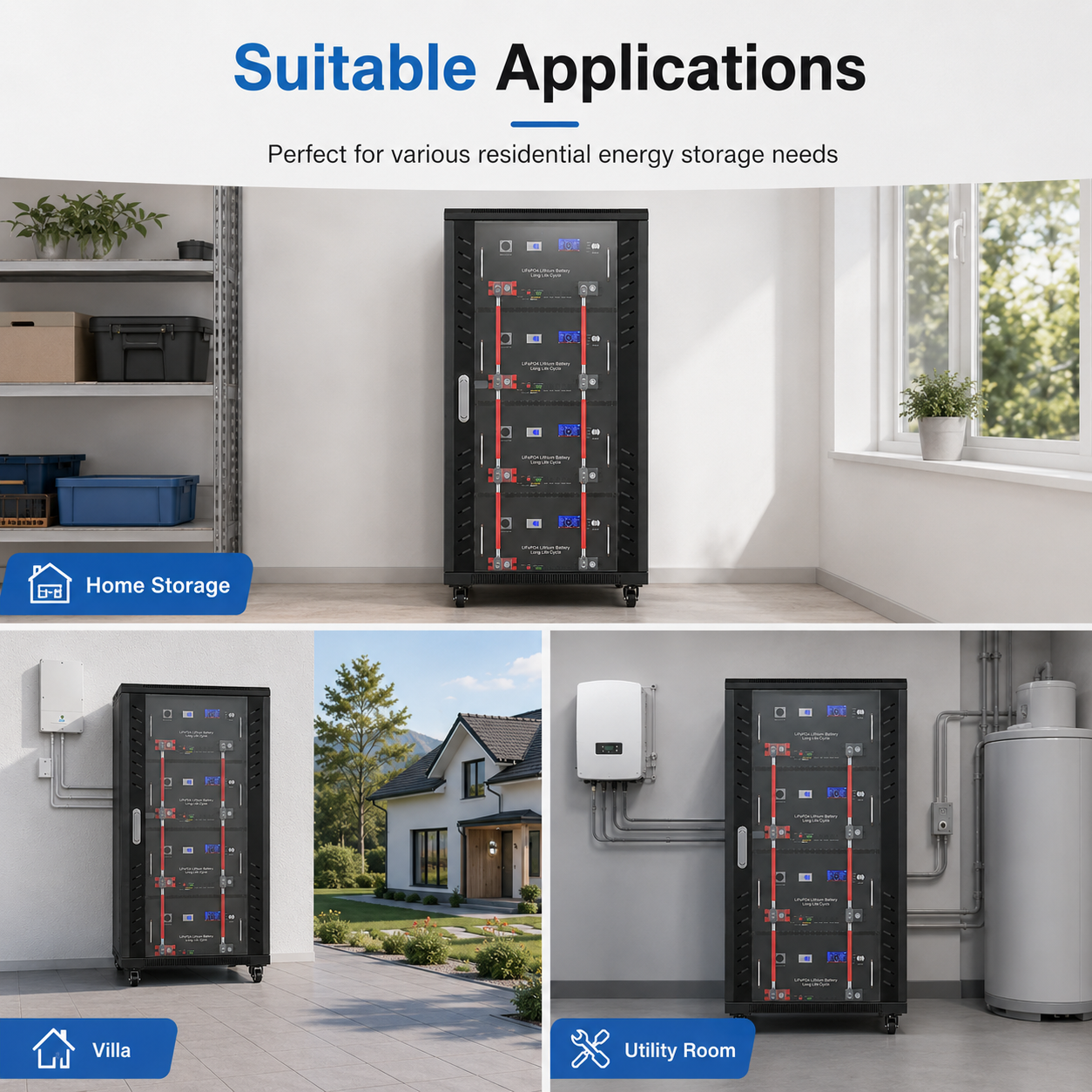

200A protection system supports high-current applications, making it ideal for residential and commercial energy storage.

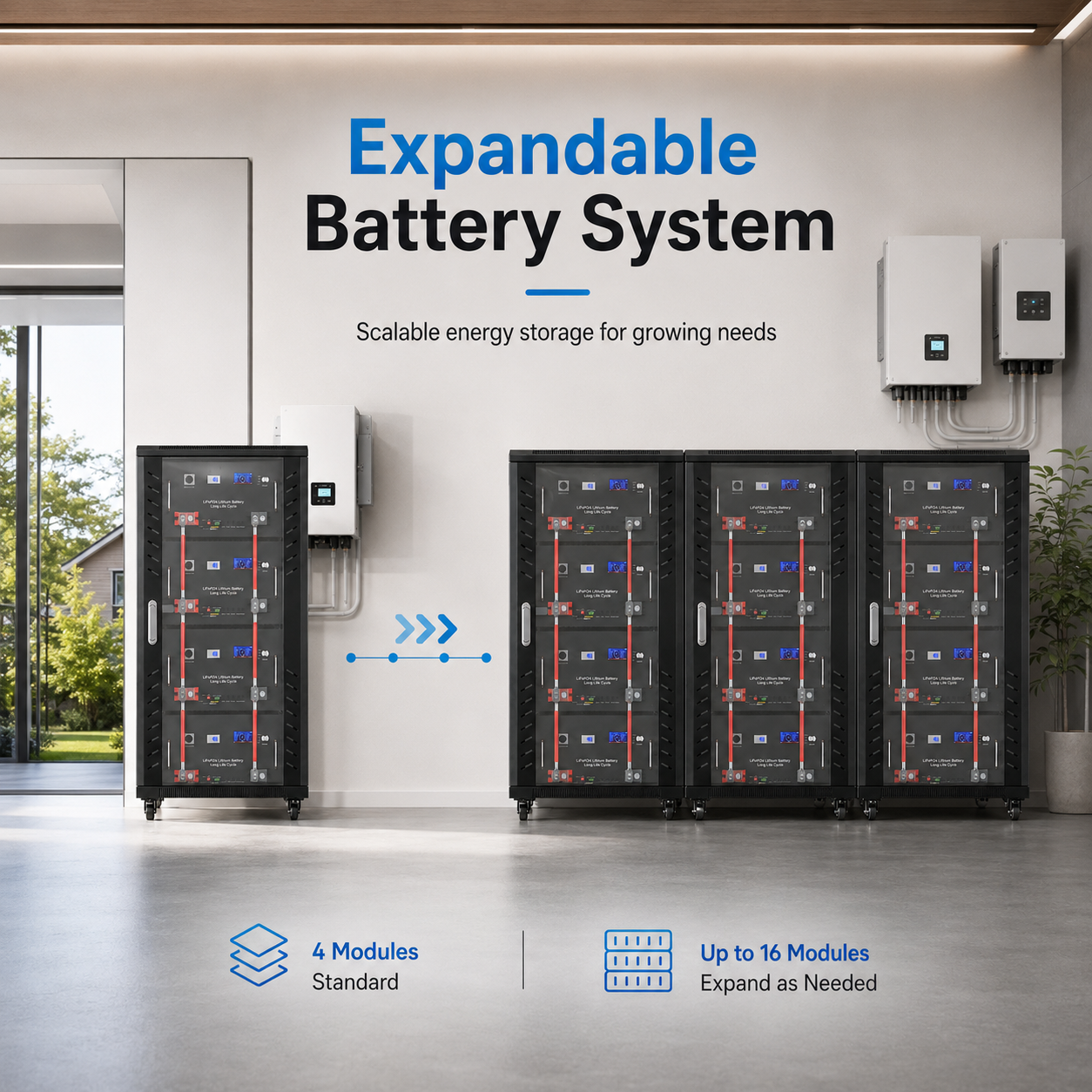

🔗 Flexible Expansion
Supports up to 16 battery units connected in parallel for scalable energy storage solutions.

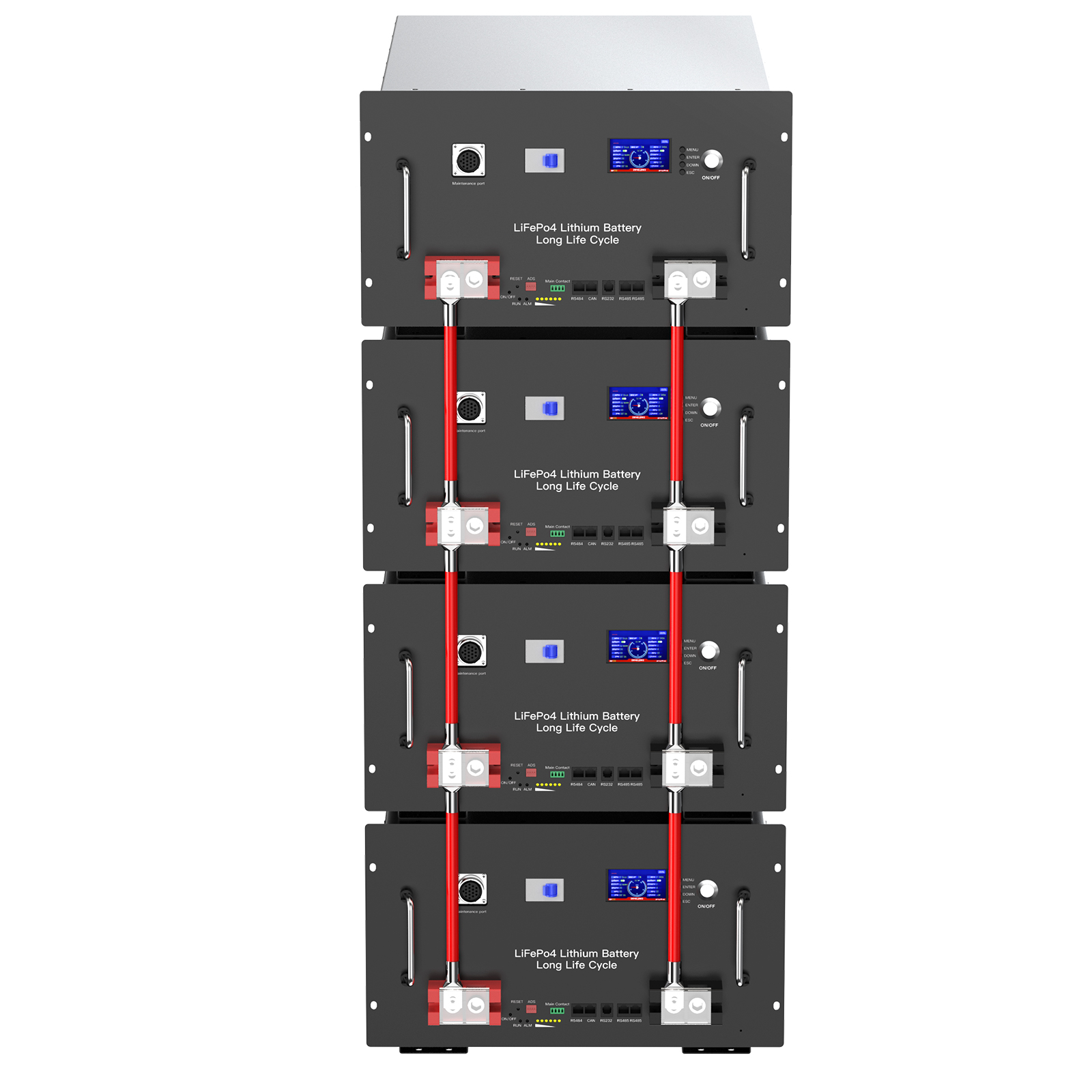

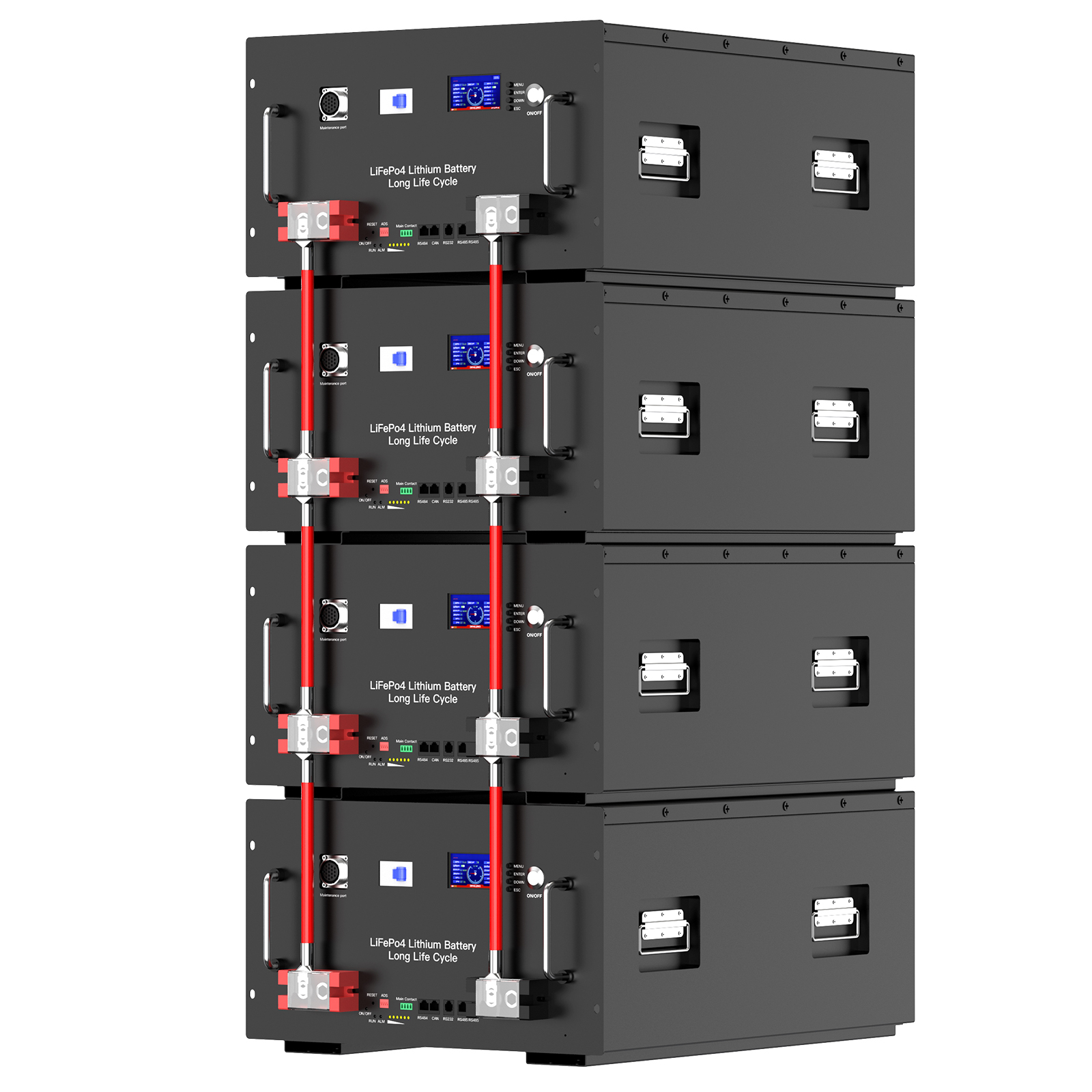

Lithium Battery Energy Storage System Specifications
Battery Cell Information
| Item |
Specification |
| Cell Type |
LiFePO4 (Lithium Iron Phosphate) |
| Cell Brand |
HITHIUM |
| Cell Model |
3.2V 280Ah*4 |
| Battery Configuration |
16S1P |
| Nominal Voltage |
51.2V |
| Nominal Capacity |
280Ah |
| Minimum Capacity |
280Ah |
| Rated Energy |
14.336kWh*4 |
| Charging Voltage |
58.4V |
| Operating Voltage Range |
36.8V – 58.4V |
| Charging Mode |
CC-CV (Constant Current / Constant Voltage) |
BMS (Battery Management System)
| Item |
Specification |
| BMS System |
Intelligent Battery Management System |
| Display |
LCD Touch Screen |
| Communication |
WiFi / Bluetooth |
| Safety Protection |
Overcharge, Over-discharge, Over-current, Short Circuit, Over-temperature Protection |
| Switch |
6A Circuit Breaker Switch |
| Maximum Continuous Current |
200A |
Charging & Discharging Performance
| Item |
Specification |
| Standard Charging Current |
56A (0℃~10℃) |
| Maximum Charging Current |
150A (-10℃~45℃) |
| Standard Discharge Current |
140A |

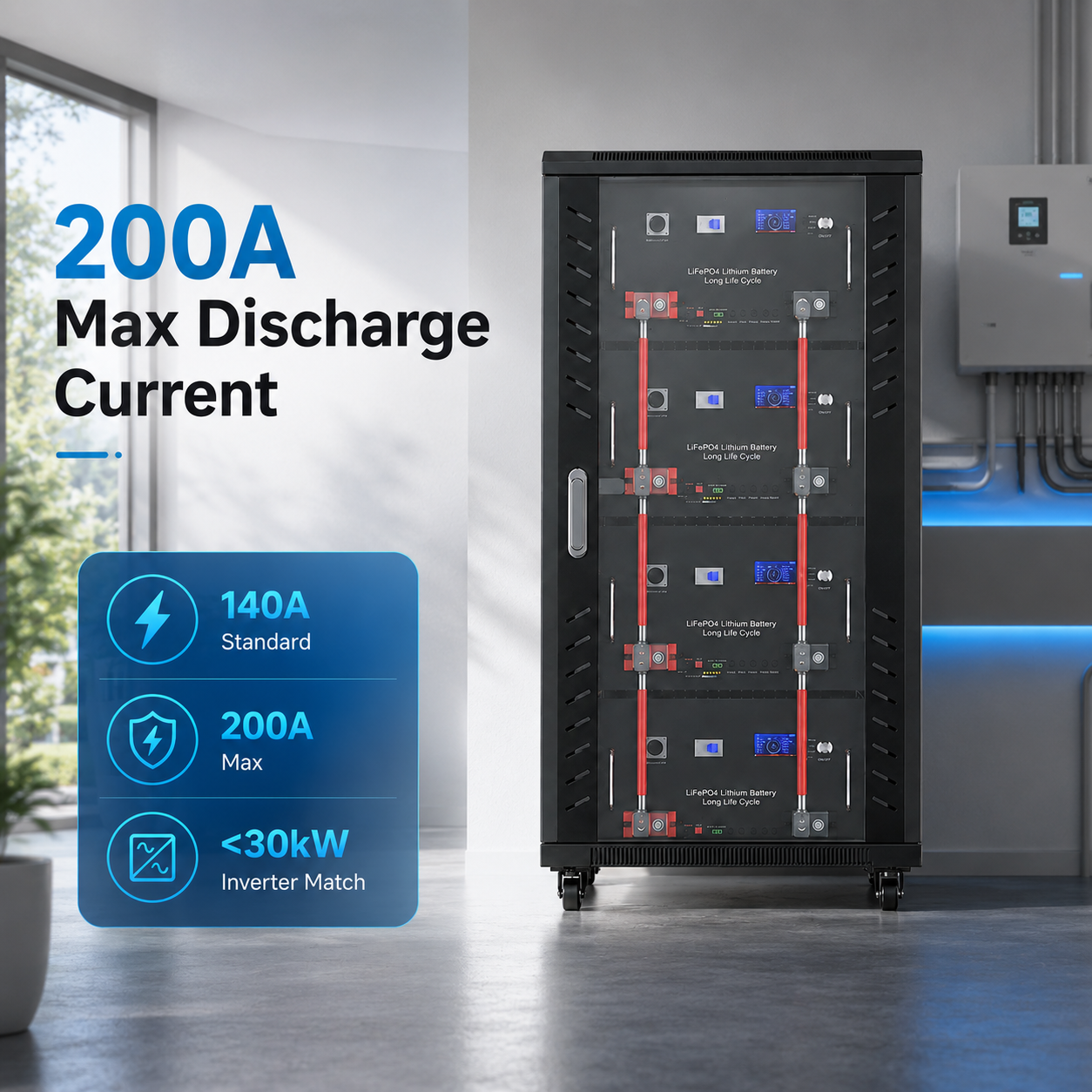

| Maximum Discharge Current |
200A |
| Internal Resistance |
≤100mΩ |
Physical Specifications
| Item |
Specification |
| Battery Dimensions |
666 × 483 × 242 mm (Excluding terminal blocks) |
| Maximum Dimensions |
702 × 483 × 242 mm (Including terminal posts) |
| Approximate Weight |
Approx. 135kg*4 |
Operating & Storage Temperature
| Condition |
Temperature Range |
| Charging Temperature |
0℃ ~ 55℃ |
| Discharging Temperature |
-20℃ ~ 60℃ |
| Storage (1 Month) |
-20℃ ~ 45℃ |
| Storage (3 Months) |
0℃ ~ 35℃ |
| Storage (6 Months) |
0℃ ~ 25℃ |

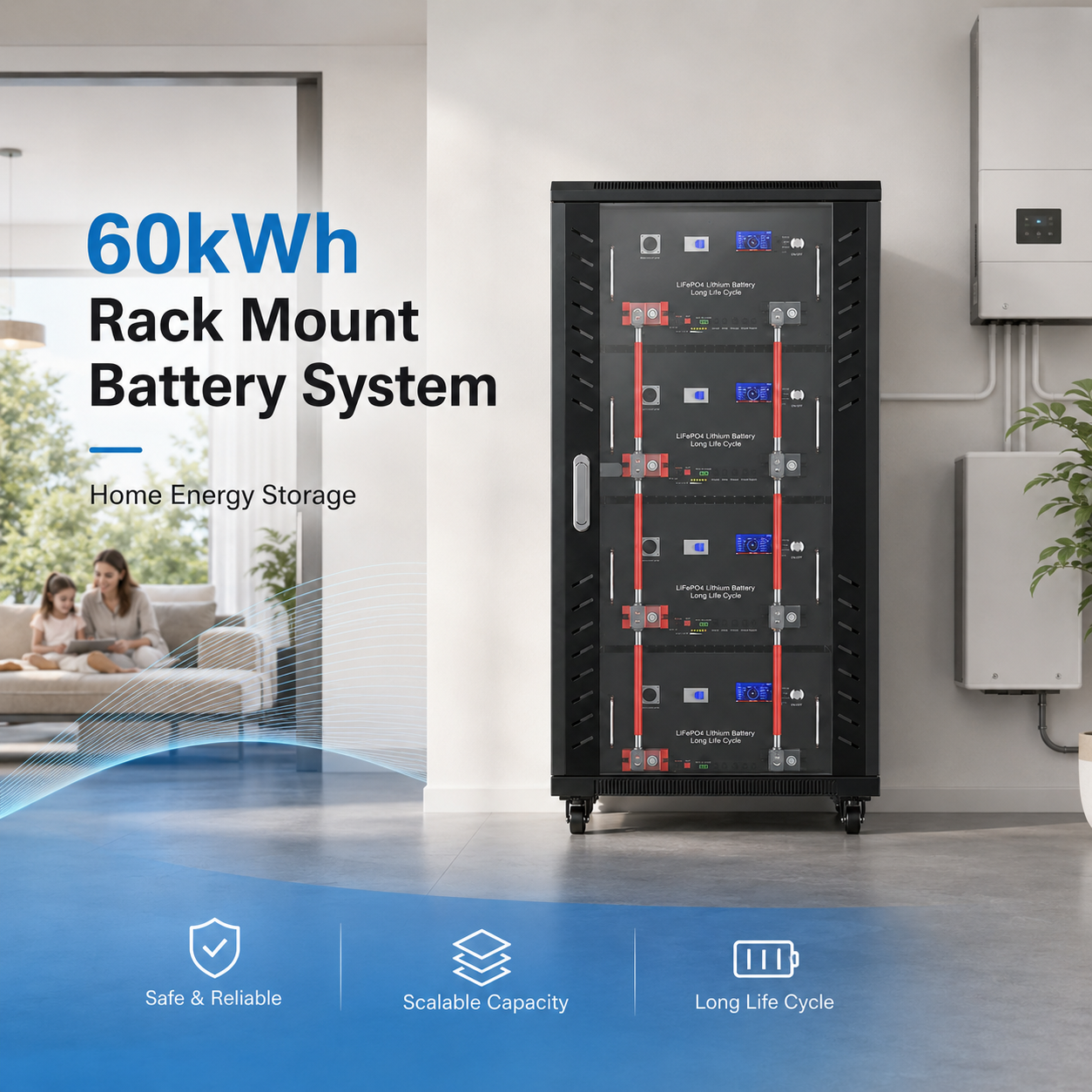

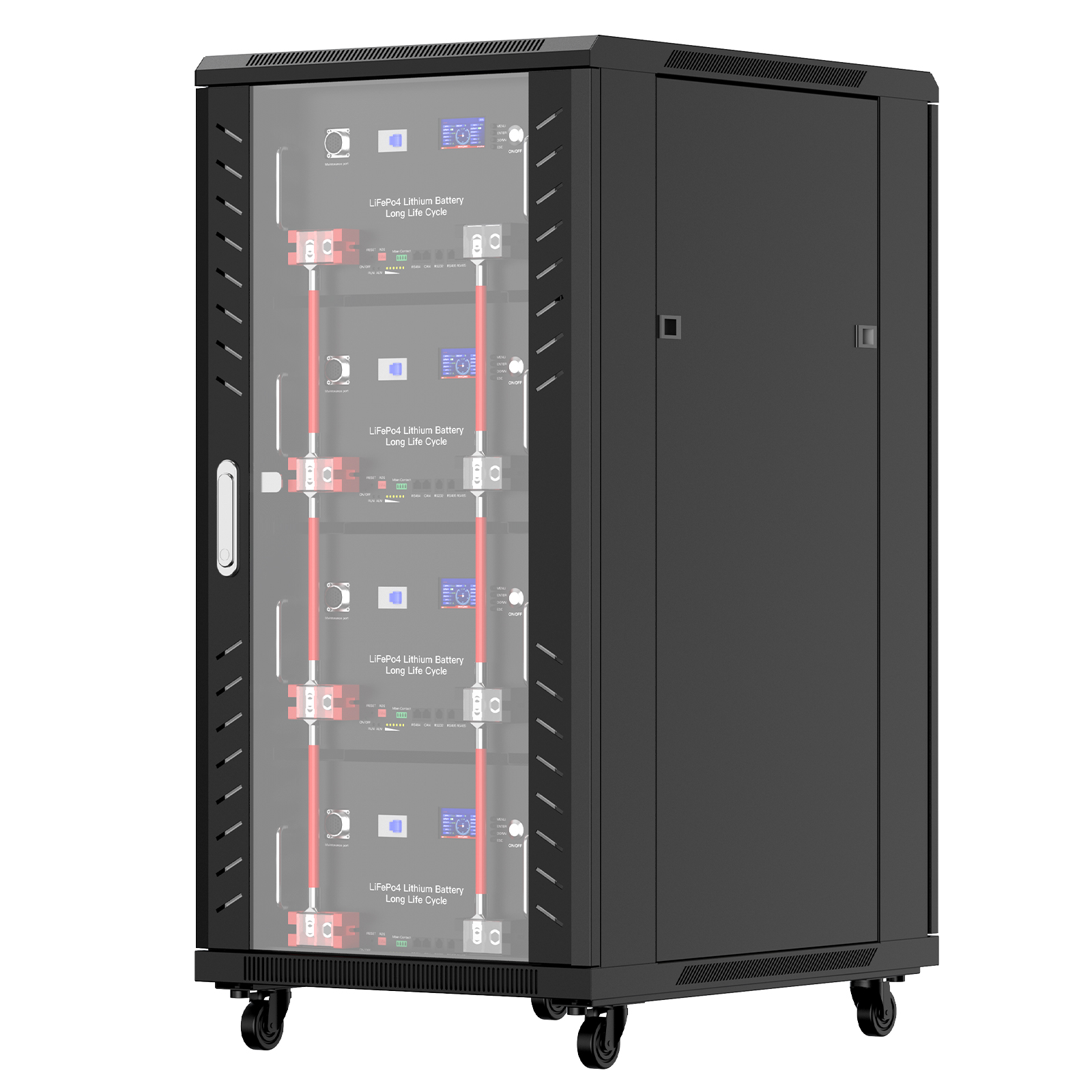

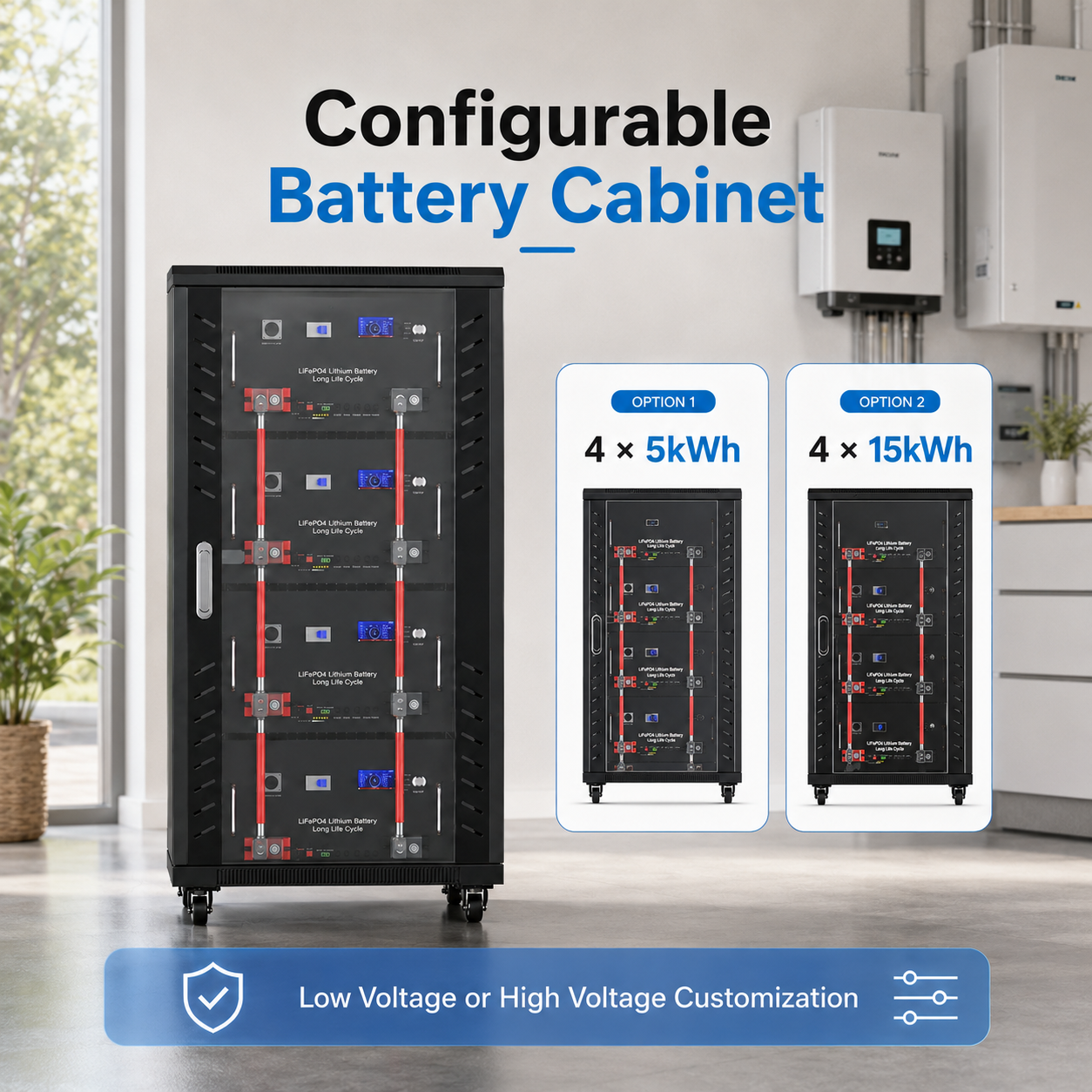

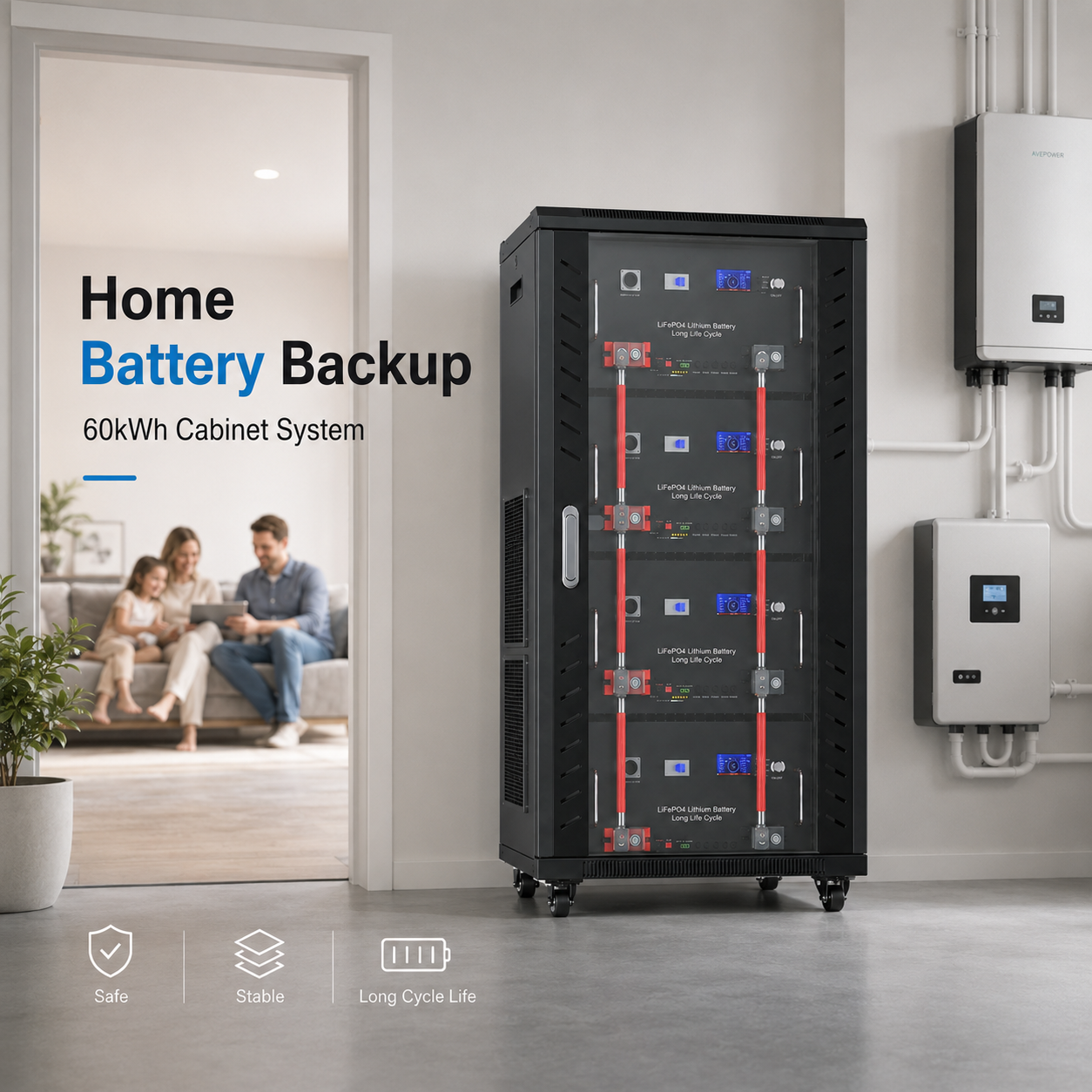

Cabinet Specifications
| Item |
Specification |
| Cabinet Type |
27U Universal Battery Cabinet with Door |
| Cabinet Size |
H1388 × W600 × D800 mm |
| Cabinet Features |
Equipped with internal wheel base for easy movement |
Cabinet Accessories
Copper Busbar
| Item |
Specification |
| Material |
Copper Busbar |
| Size |
T5.0mm × W25mm × L1000mm |
| Quantity |
4 pcs |
| Current Support |
Supports up to 700A |
Battery Connection Cable
| Item |
Specification |
| Cable Type |
Battery-to-Inverter Connection Cable |
| Cable Size |
0# (75mm² cable) |
| Length |
1.5 meters |
| Maximum Output |
Supports inverter systems up to 30kW |
| Maximum Current |
600A |
