Product Details

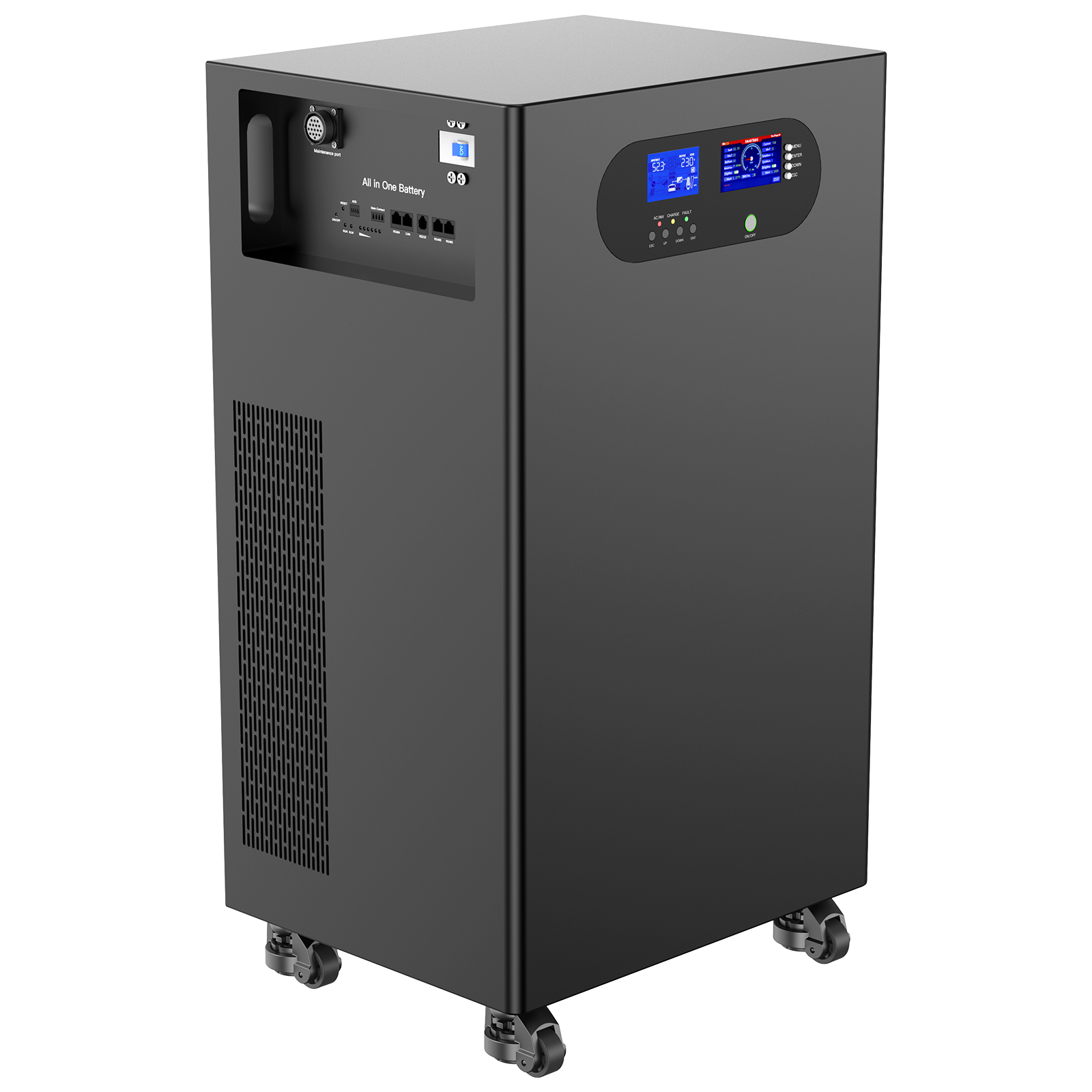

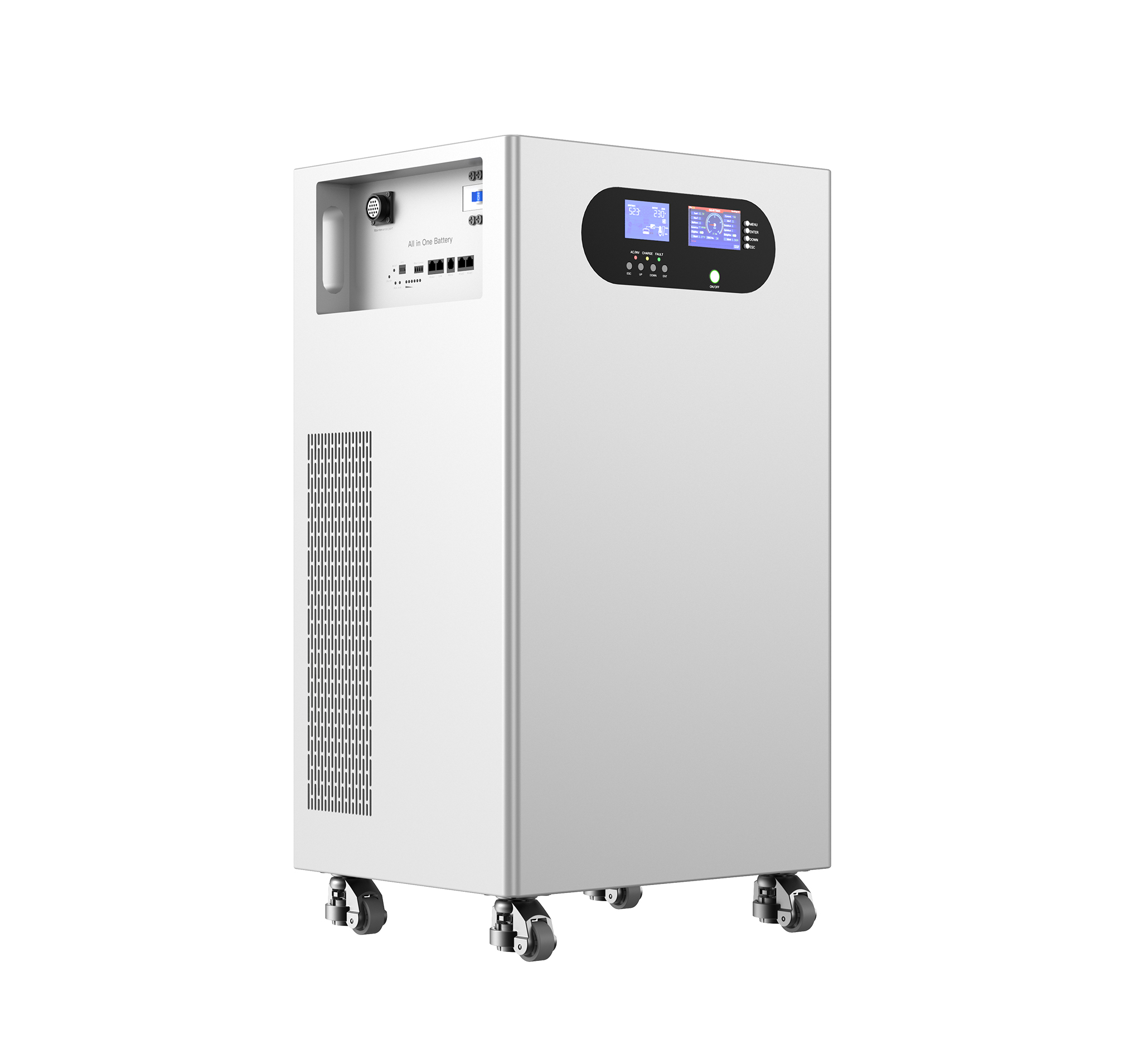

⚡ All-in-One 16kWh Home Energy Storage System
A complete solar energy solution combining battery storage, inverter, and intelligent management system in one integrated design.
Designed for modern homes, this system stores solar energy efficiently and provides stable electricity during grid outages or off-grid situations.
⭐ Key Features
🔋 16kWh High-Capacity Energy Storage
Power your home with reliable stored energy.
- Battery Type: LiFePO4 Lithium Battery
- Voltage: 51.2V
- Capacity: 314Ah
- Energy Capacity: 16.08kWh
- Battery Configuration: 16S1P

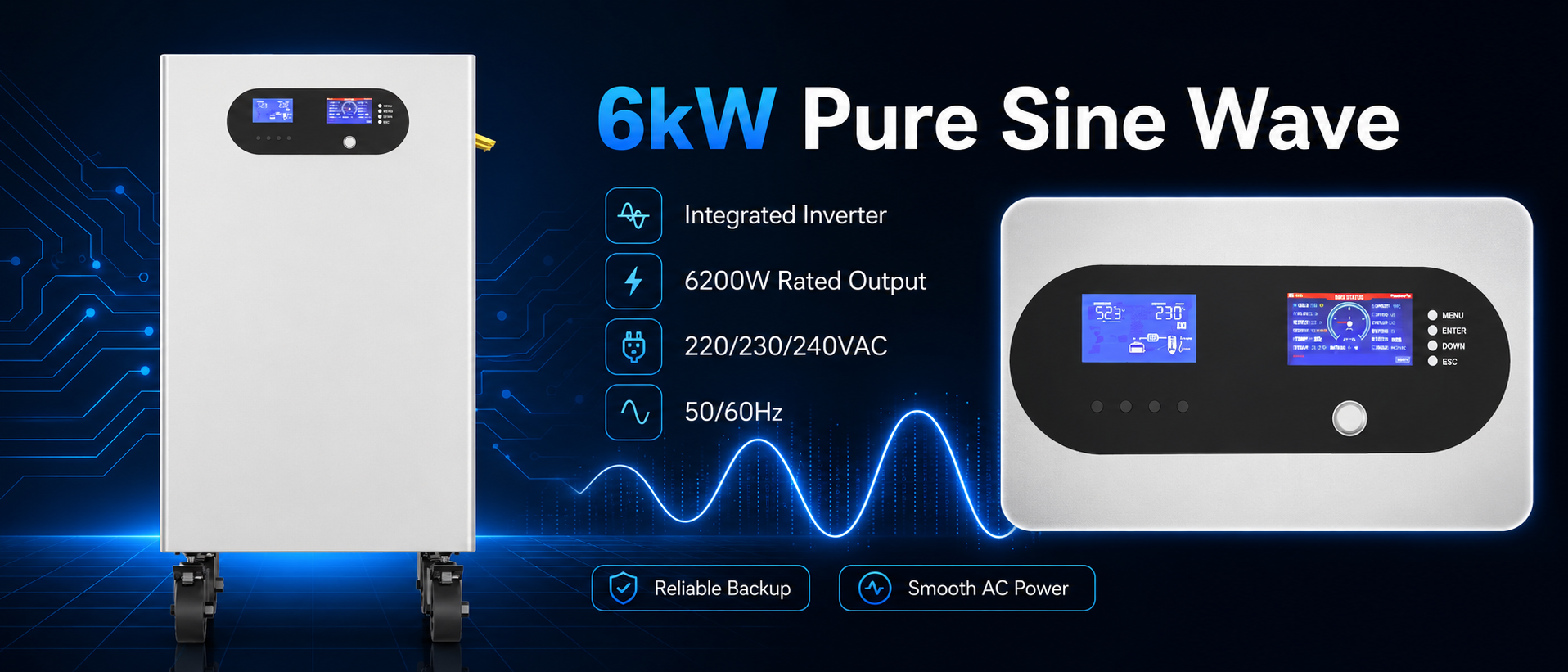

⚡ Built-in 6.2kW Pure Sine Wave Inverter
Integrated inverter provides efficient AC power conversion.
Output Performance:
- Rated Output Power: 6200W
- Peak Power: 12400VA
- Output Voltage: 220V / 230V / 240V
- Pure Sine Wave Output
- Frequency: 50/60Hz
Suitable for:
✔ Home appliances
✔ Office equipment
✔ Solar backup systems
✔ Off-grid power applications
☀️ Intelligent Solar Charging System
Supports solar energy input with built-in MPPT controller.
Solar Input:
- Max PV Input Power: 6200W
- MPPT Voltage Range: 120-500VDC
- Maximum PV Charging Current: 100A
Capture solar energy efficiently and reduce dependence on the grid.
🛡️ Advanced Safety Protection
Built-in intelligent protection system ensures stable and safe operation.
Protection functions:
✅ Overcharge Protection
✅ Over-discharge Protection
✅ Over-current Protection
✅ Temperature Protection
✅ Short-circuit Protection
Equipped with:
- PACE 200A BMS
- RS485 / CAN Communication
- Bluetooth + WiFi Monitoring
- Maintenance Port

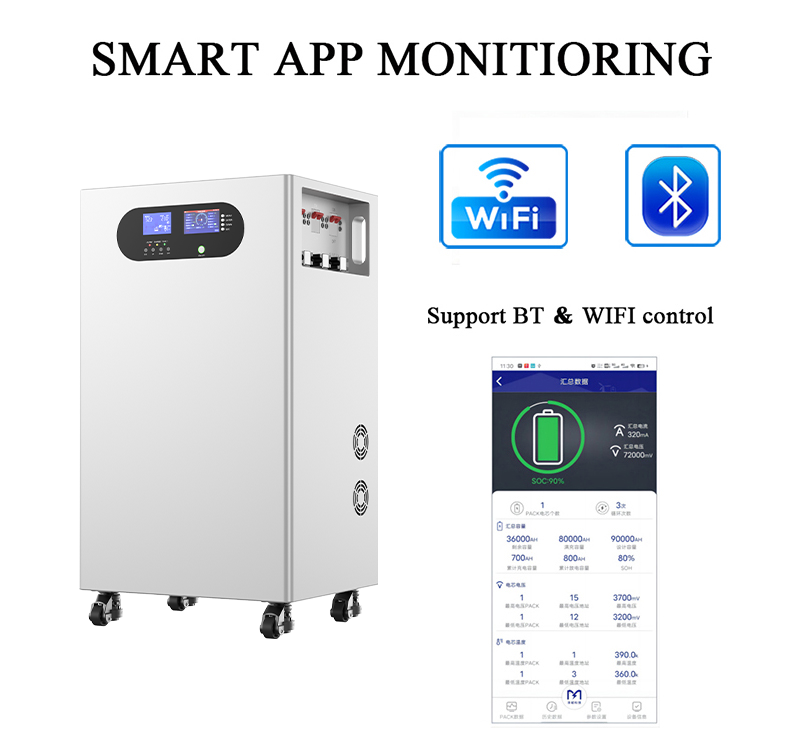

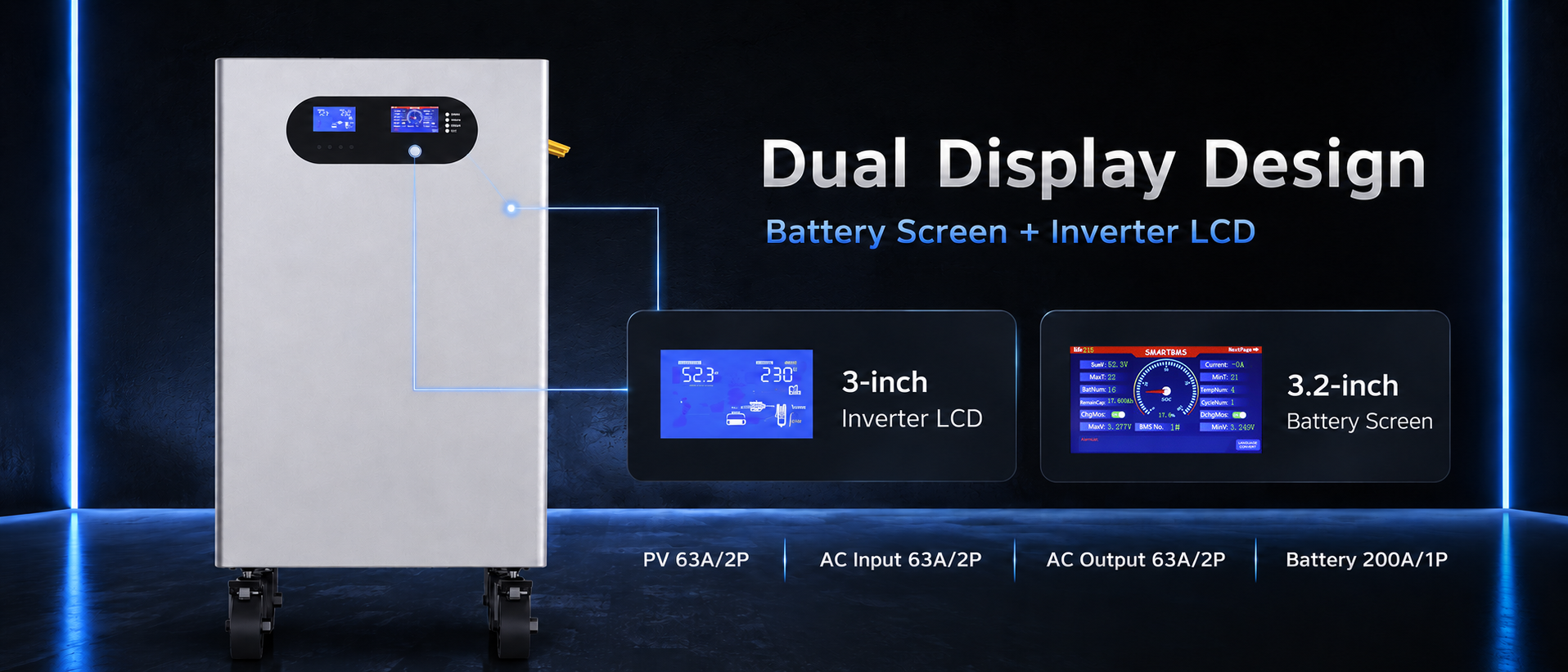

📱 Smart Monitoring & Control
Real-time system monitoring through:
- 3.2-inch battery information display
- 3-inch inverter LCD display
- Bluetooth & WiFi connection
- Intelligent energy management

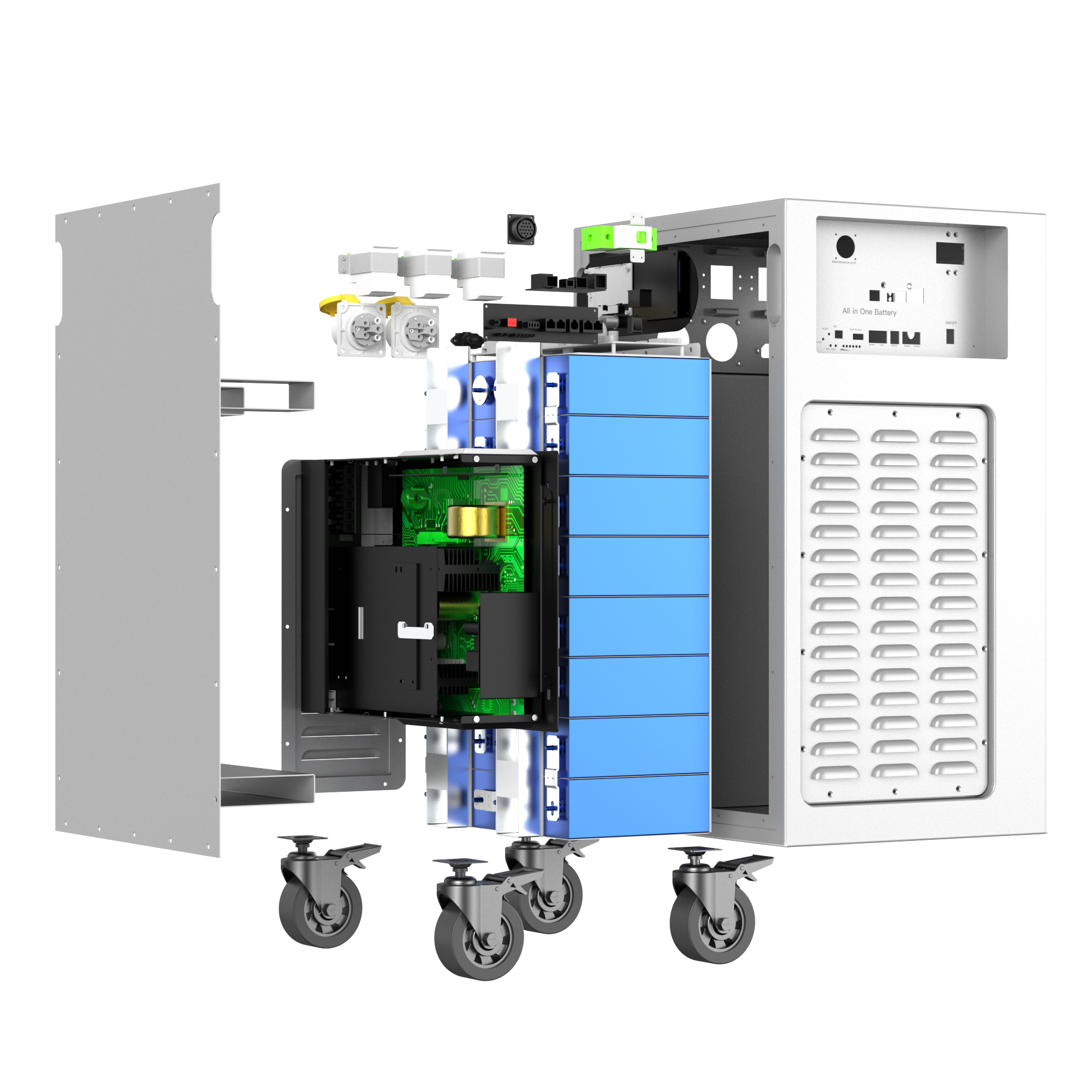

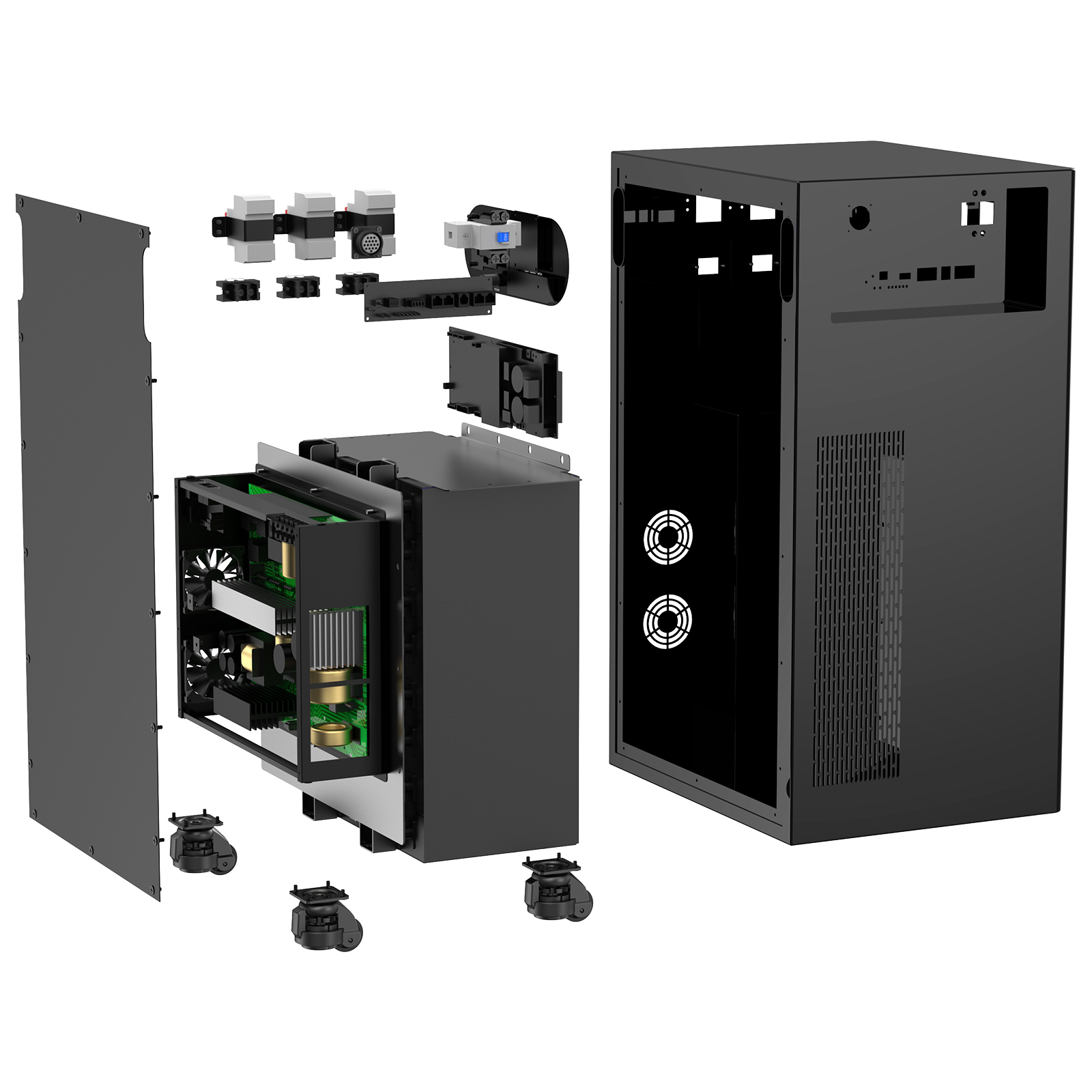

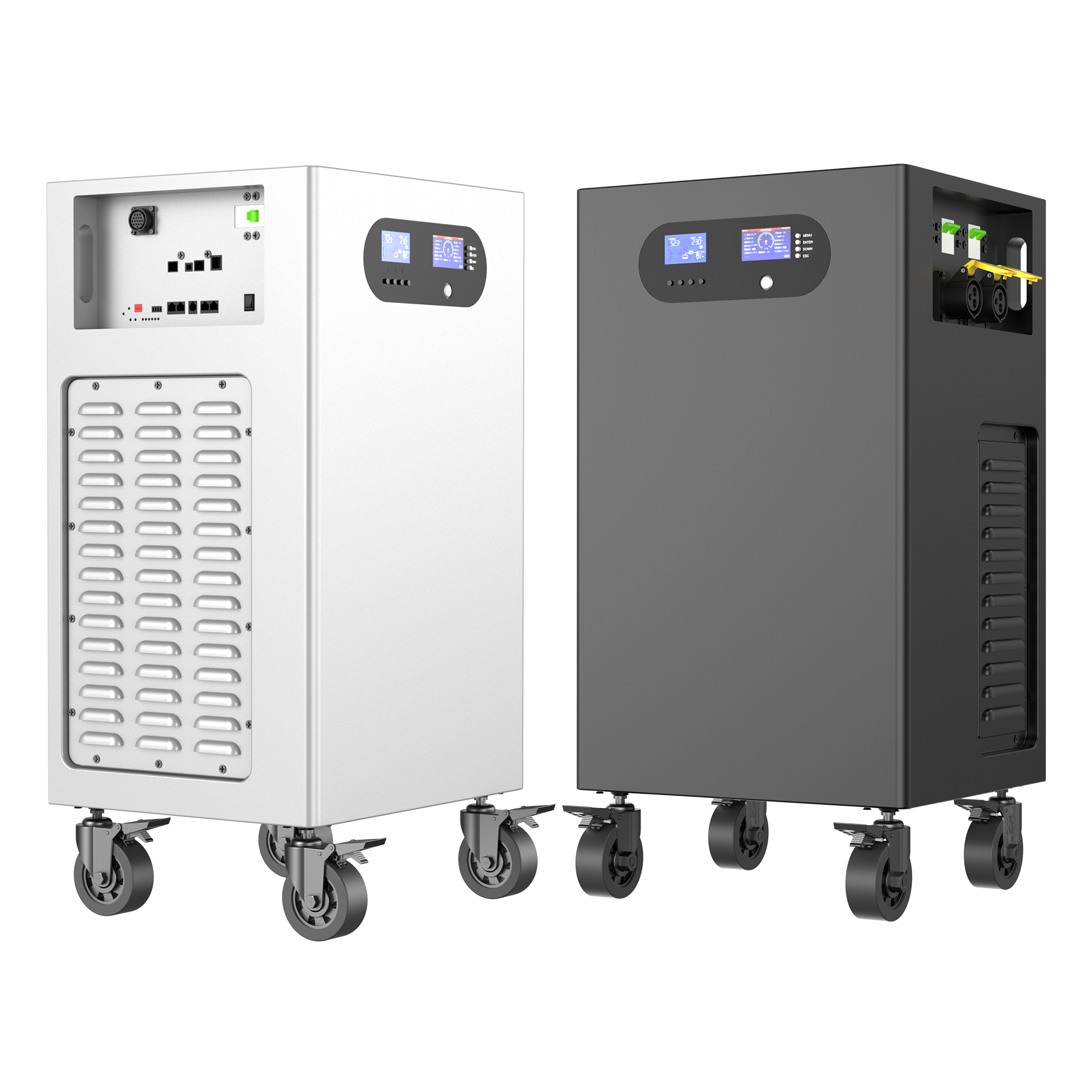

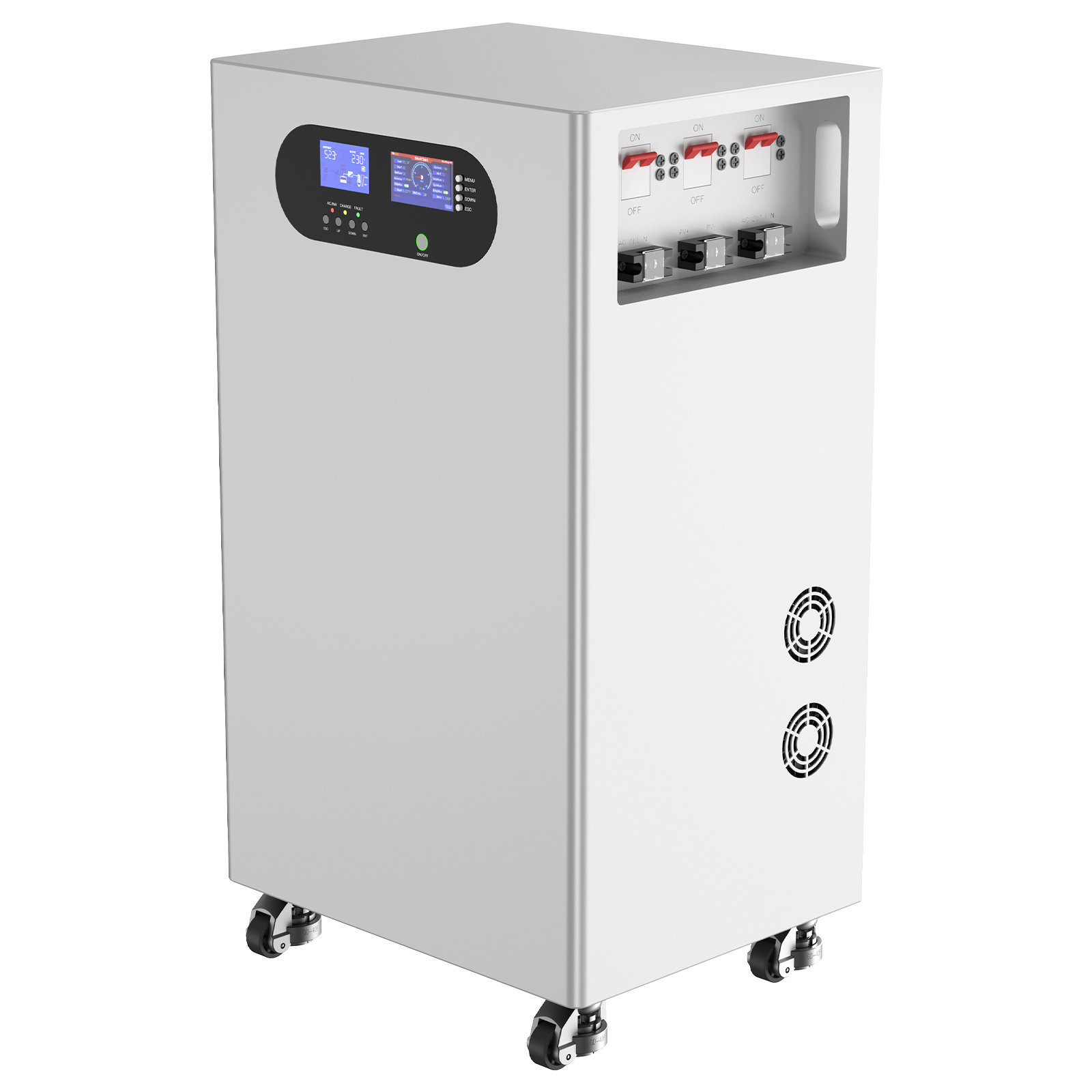

🏠 Integrated All-in-One Design
Compared with traditional separate battery + inverter systems:
✔ Easier installation
✔ Cleaner appearance
✔ Space saving
✔ Plug-and-play energy solution

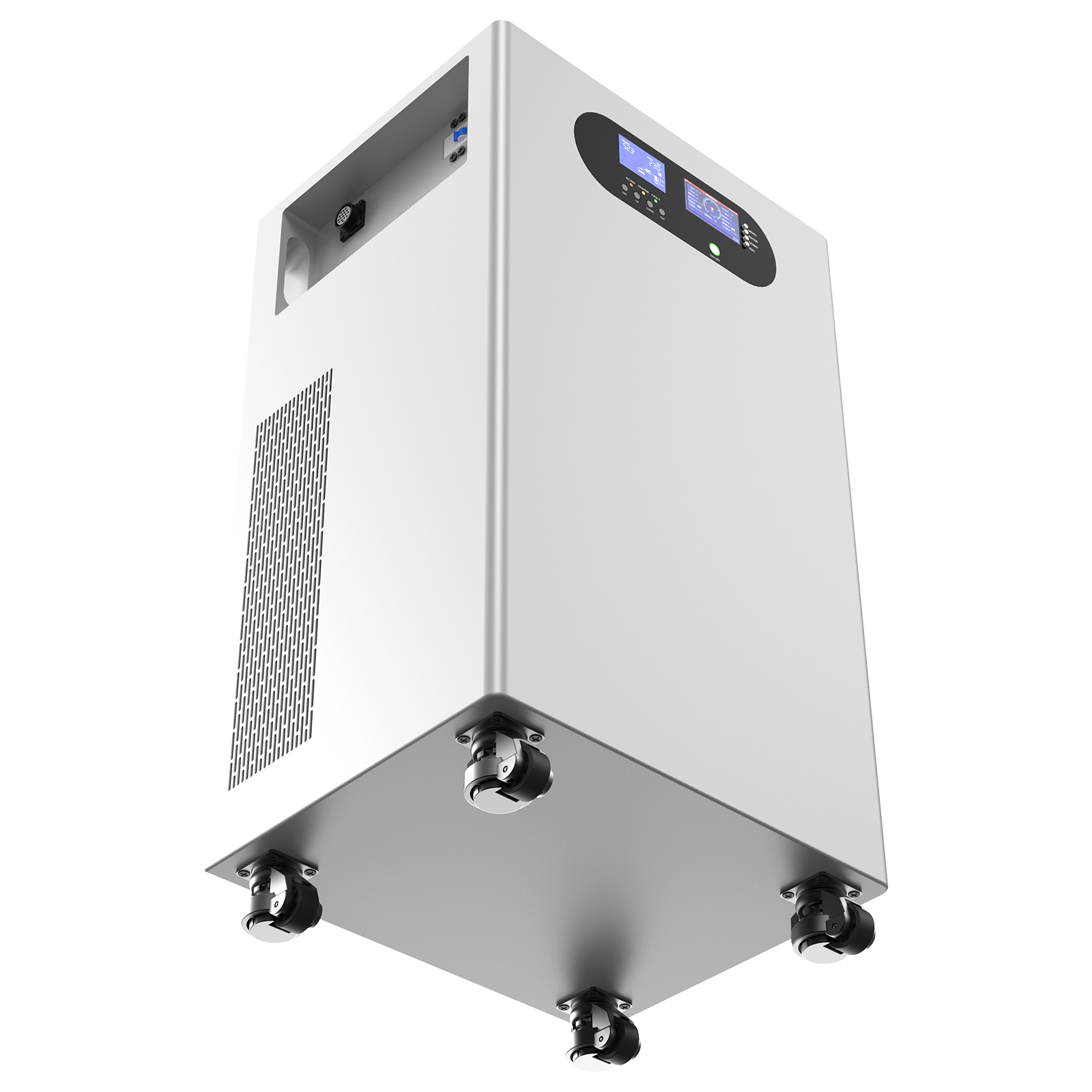

Product Size:
- Without wheels: 483 × 393 × 800mm
- With wheels: 483 × 393 × 871mm
Weight:
Technical Specifications
| Item |
Specification |
| Battery Type |
LiFePO4 Lithium Battery |
| Battery Cell |
HITHIUM LFP 314Ah |
| Nominal Voltage |
51.2V |
| Capacity |
314Ah |
| Energy Capacity |
16.08kWh |
| Inverter Power |
6200W |
| Peak Power |
12400VA |
| Charging Voltage |
58.4V |
| Max Charging Current |
157A |
| Max Discharge Current |
200A |
| Battery Protection |
PACE 200A BMS |
| Communication |
RS485 / CAN / Bluetooth / WiFi |

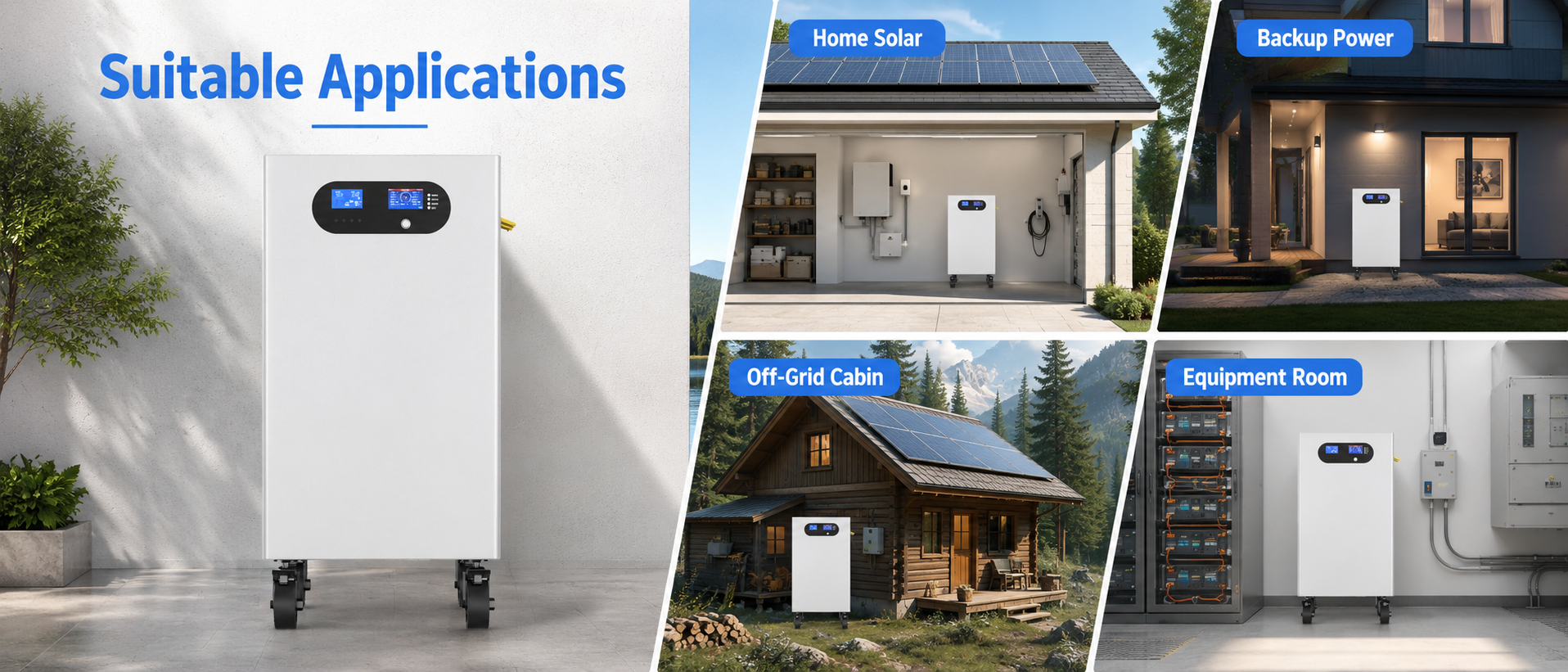

Applications
🏡 Home Backup Power
Keep essential appliances running during power outages.
☀️ Solar Energy Storage
Store daytime solar energy and use it anytime.
🌍 Off-Grid Living
Reliable electricity solution for remote locations.
🏢 Small Commercial Power
Support stable power supply for workplaces and businesses.
Product Selling Points
🔋 16kWh Large Energy Capacity
Long-lasting power support for homes.
⚡ 6.2kW Hybrid Inverter Built-in
Battery + inverter integrated design.
☀️ Solar Ready System
Maximize renewable energy usage.
🛡️ Safe LiFePO4 Battery
Long lifespan and excellent stability.
📱 Smart Remote Monitoring
Bluetooth & WiFi intelligent control.
