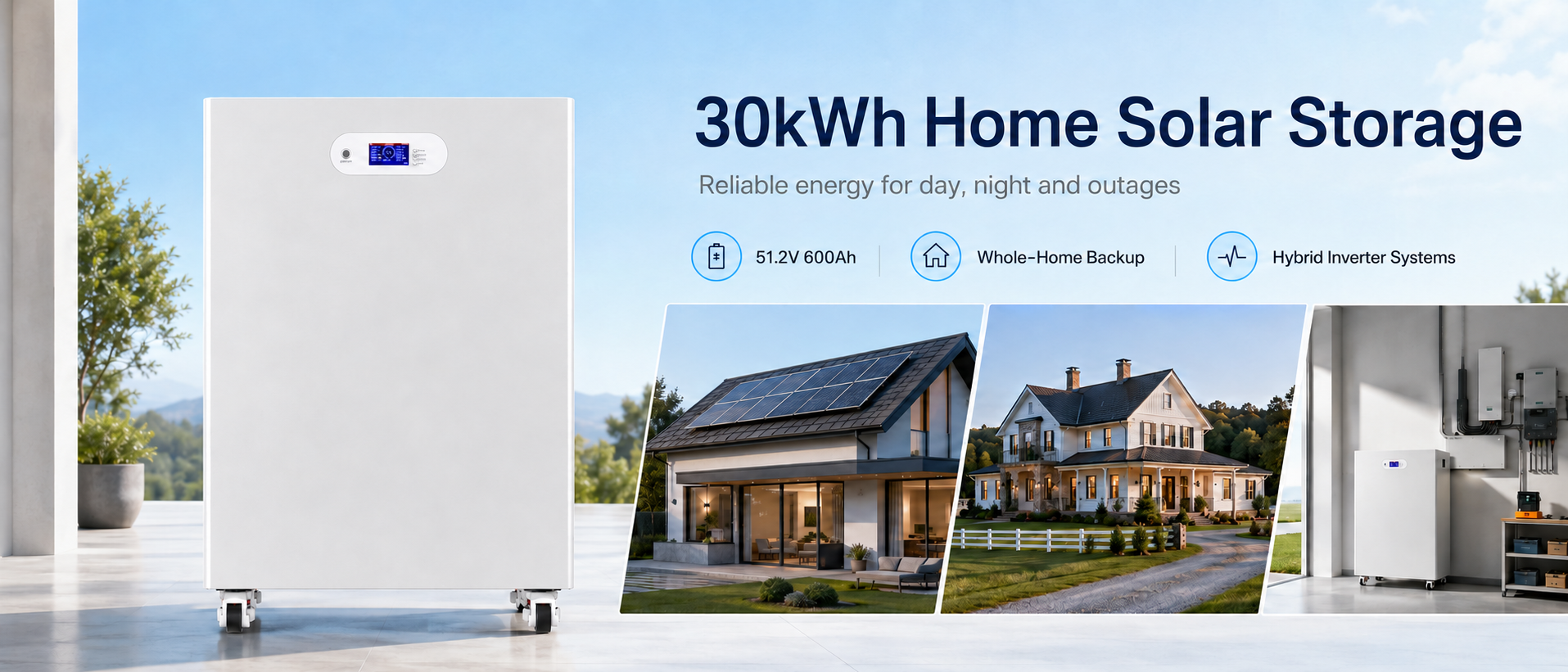

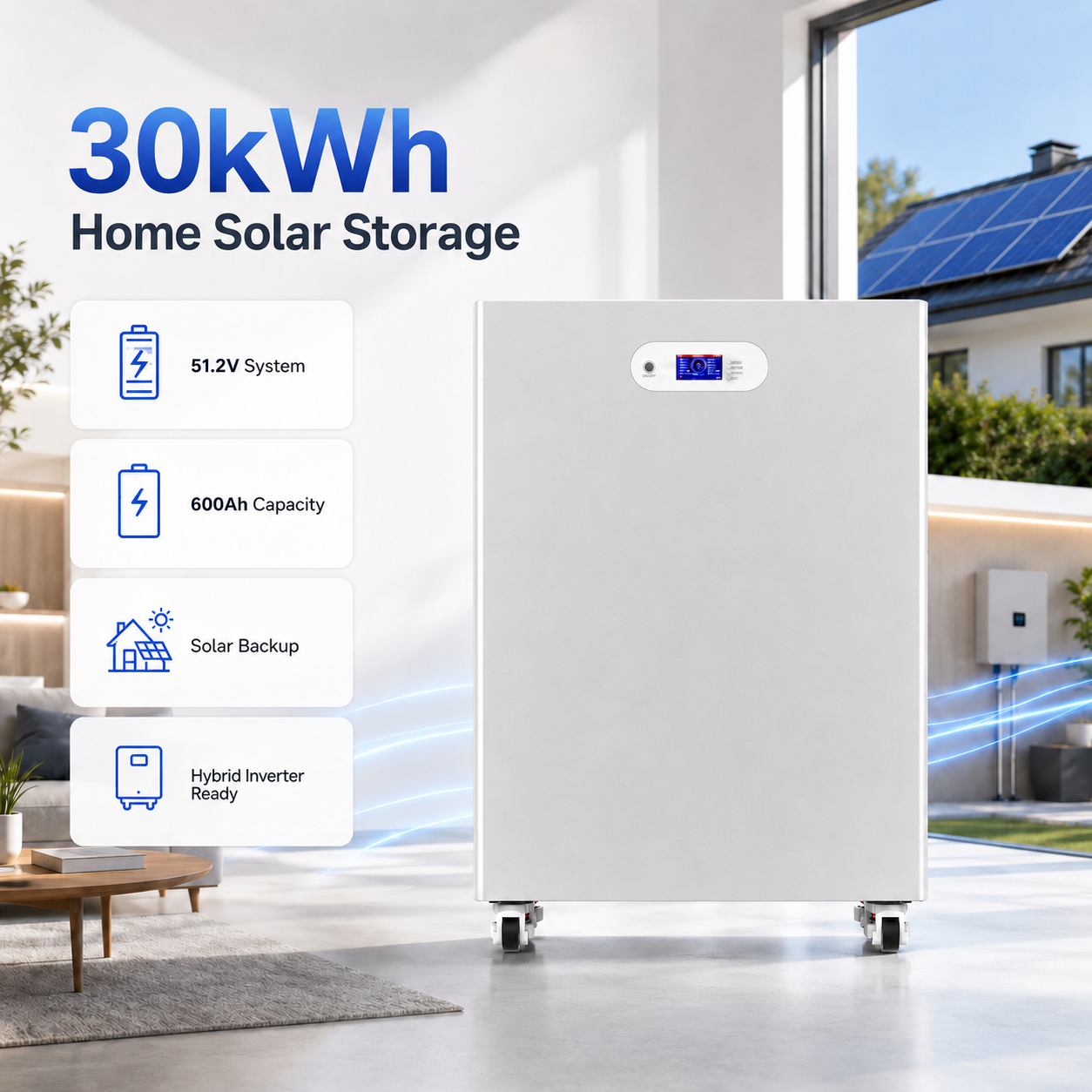

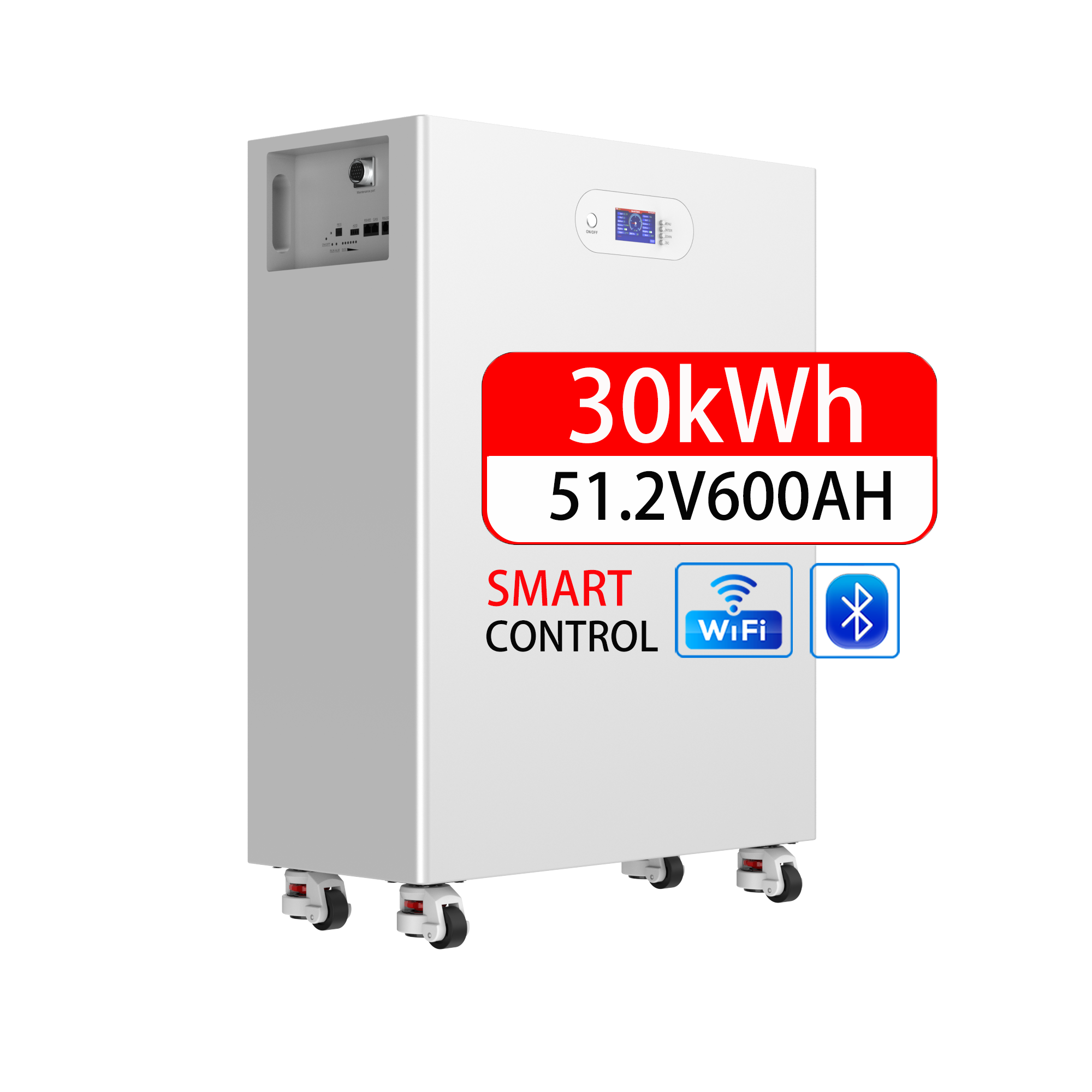

XIYU 30 kWh High Capacity LiFePO4 Energy Storage Battery
Power Your Home With Reliable Energy Storage
The XIYU 51.2V 560Ah LiFePO4 Battery System is designed for homeowners, solar installers and energy solution providers who require higher capacity and dependable backup power.
With a large 30kWh energy capacity, advanced lithium iron phosphate technology and intelligent battery management, this system provides stable energy storage for residential solar systems, off-grid applications and emergency backup power.
Key Features
🔋 30kWh High Capacity Storage
Built for high energy demand applications.
Specifications:
- Battery Voltage: 51.2V
- Battery Capacity: 560Ah
- Rated Energy: 30kWh
Ideal for:
✔ Large homes
✔ Solar energy storage
✔ Backup power systems
✔ Off-grid applications
🛡 Premium LiFePO4 Battery Technology
Using high-quality HITHIUM LFP battery cells, providing:
- Excellent safety performance
- Long service life
- Stable charging and discharging
- Reliable daily operation
Battery Cell:
HITHIUM LFP71173207 / 280Ah
⚡ Smart 200A BMS Protection System
The integrated intelligent Battery Management System ensures safe and efficient operation.
Protection functions:
✔ Overcharge Protection
✔ Over Discharge Protection
✔ Temperature Protection
✔ Over Current Protection

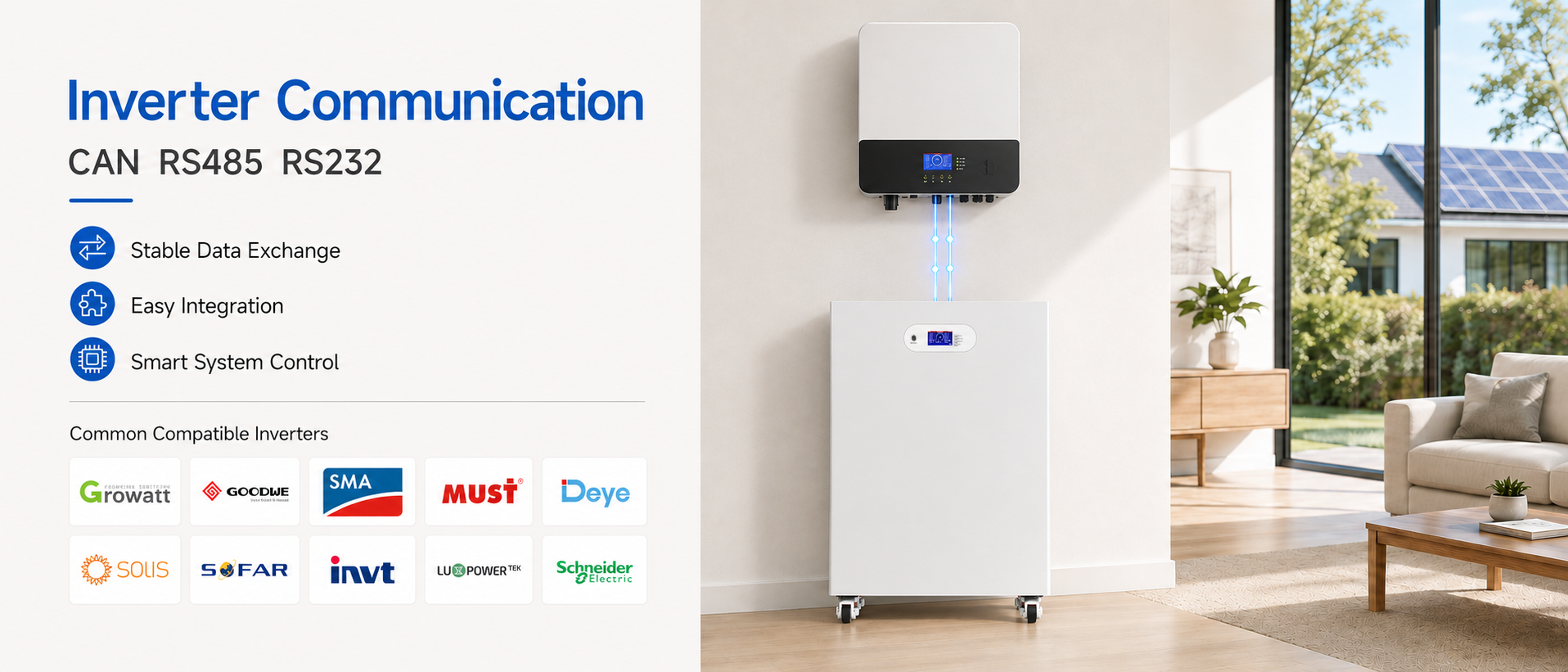

Smart communication:
- RS485
- RS232
- CAN
- Inverter communication support
- Bluetooth & WIFI monitoring
🔌 Expandable Energy Storage Design
Designed for future energy expansion.
Features:
- Supports parallel connection
- Up to 15 battery units can be connected
- Flexible capacity expansion
- Suitable for larger residential energy systems

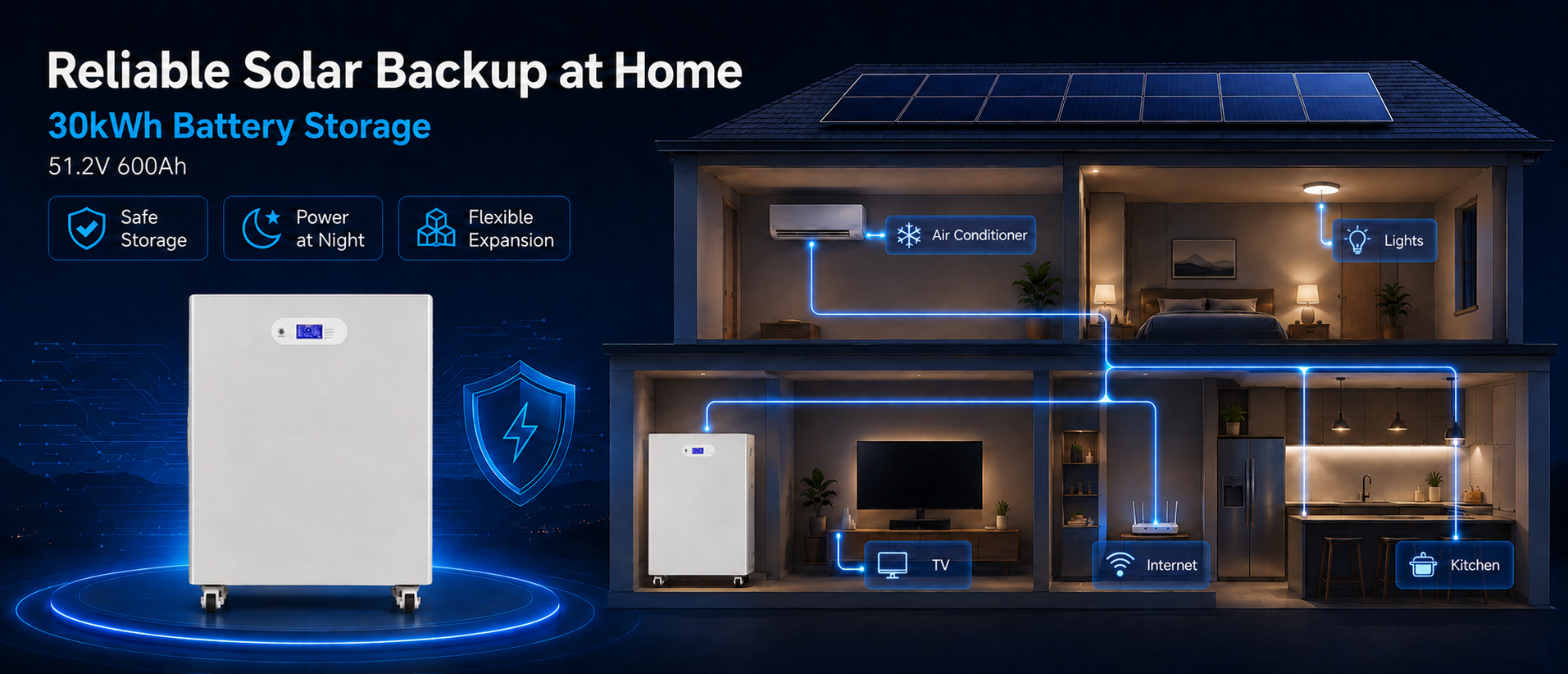

☀ Solar Compatible Energy Solution
Store clean solar energy during the day and use it when needed.
Perfect for:
Residential Solar Systems
Reduce electricity costs and improve energy independence.
Backup Power
Keep essential appliances running during power outages.
Off-Grid Living
Reliable electricity for remote locations.

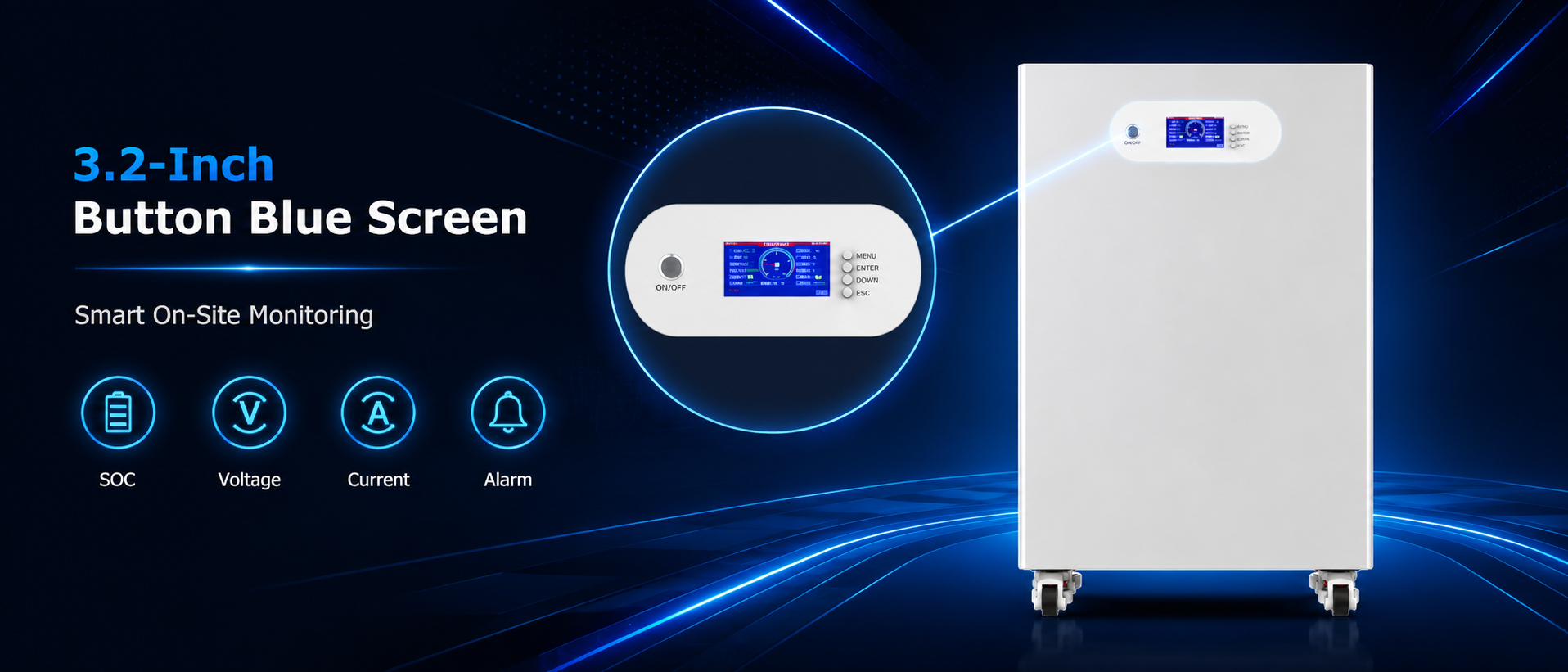

📱 Intelligent Monitoring & Control
Equipped with:
- 3.2-inch blue screen display
- Bluetooth monitoring
- WIFI connection
- Smart battery status management
Users can easily monitor battery information and system operation.
Product Specifications
| Item |
Specification |
| Battery Type |
LiFePO4 |
| Voltage |
51.2V |
| Capacity |
560Ah |
| Energy Capacity |
30kWh |

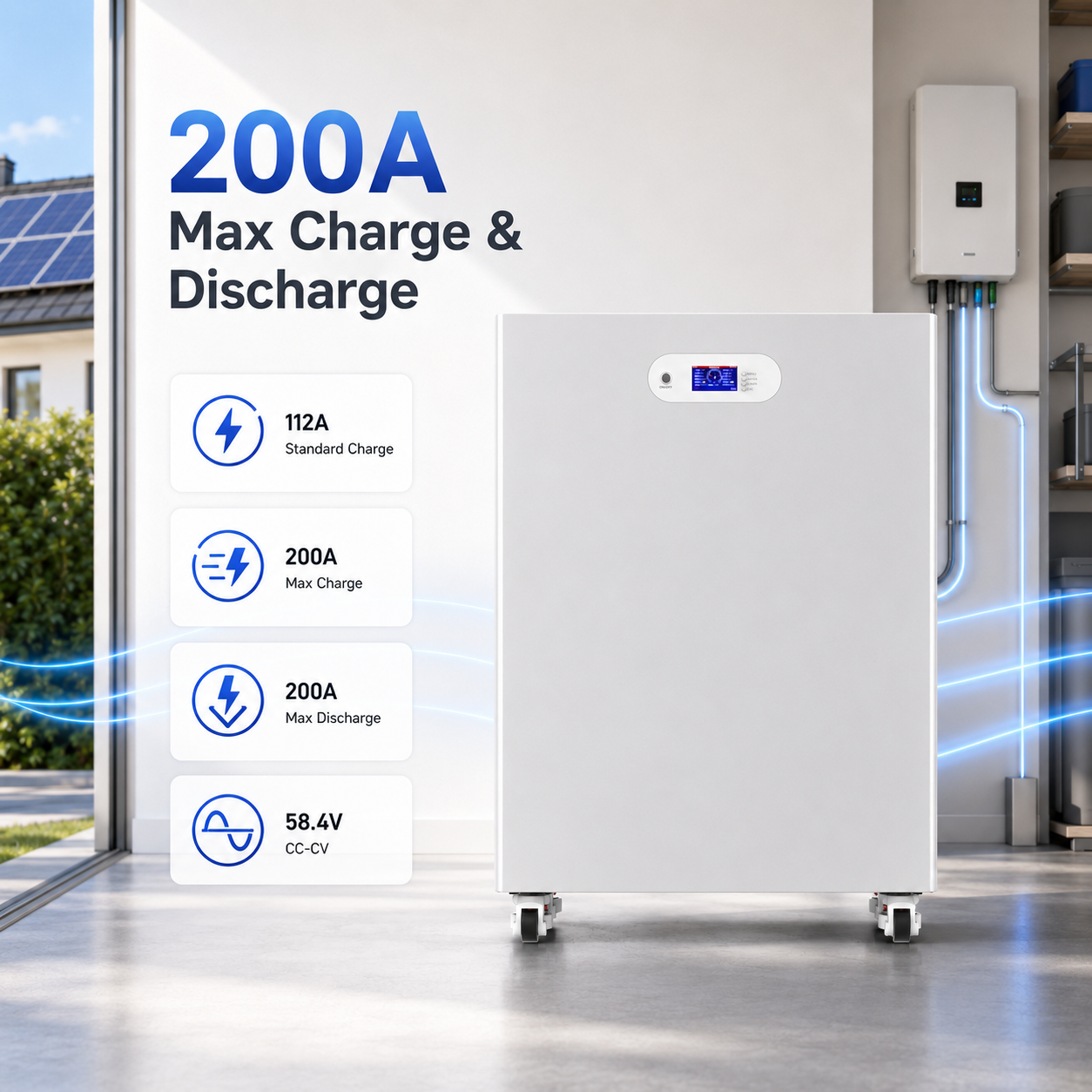

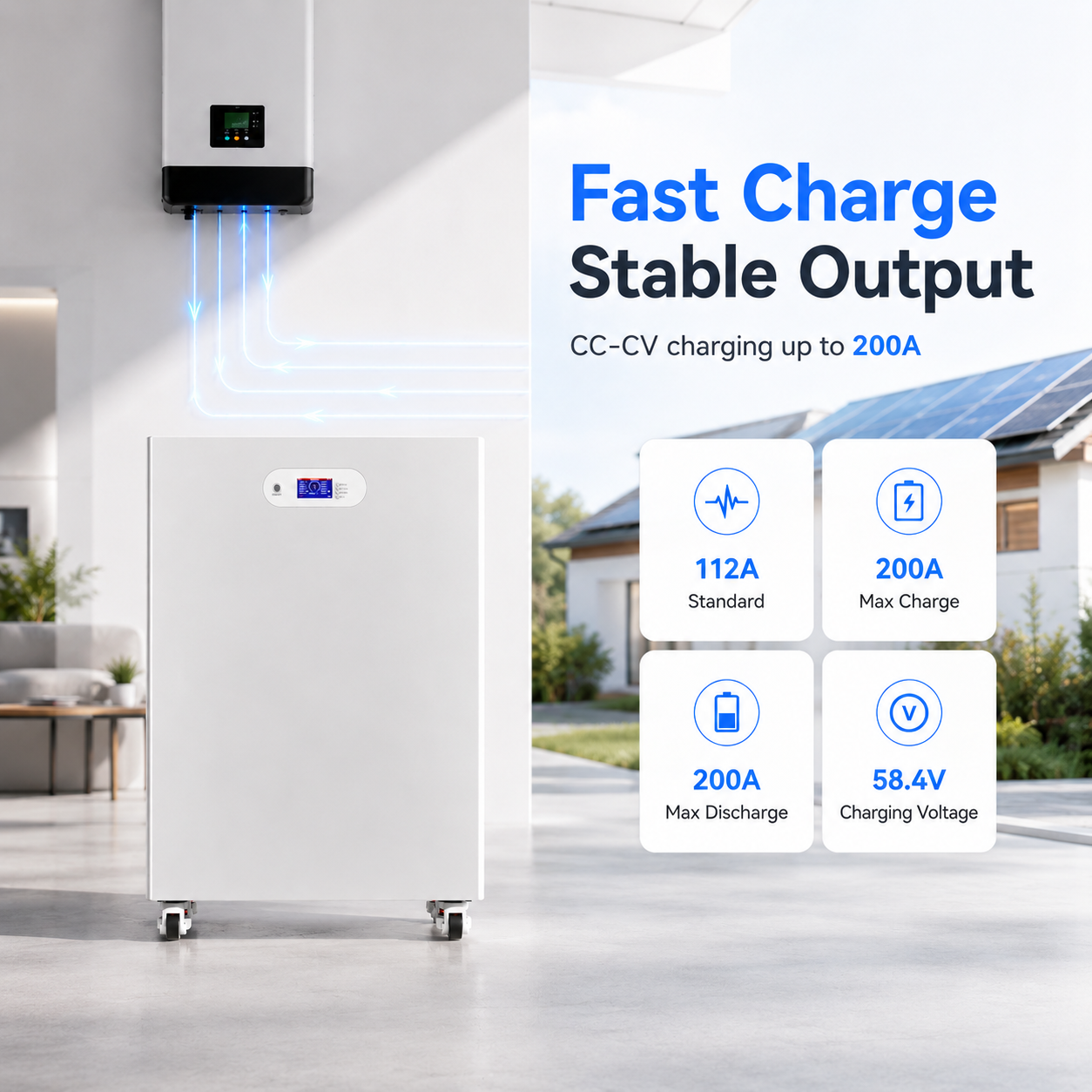

| Max Charge Current |
200A |
| Max Discharge Current |
200A |
| BMS |
PACE 200A |
| Communication |
RS485 / RS232 / CAN |
| Parallel Expansion |
Up to 15 Units |
| Display |
3.2-inch Screen |
| Weight |
Approx.220kg |
| Size |
998×330×735mm |
Applications
🏠 Large Home Energy Storage
Provide reliable electricity for villas and large residential buildings.
☀ Solar Battery Storage
Store excess solar power and improve renewable energy usage.
⚡ Emergency Backup Power
Maintain power supply during grid failures and outages.
🏢 Commercial Energy Solutions
Expandable design for higher energy requirements.
