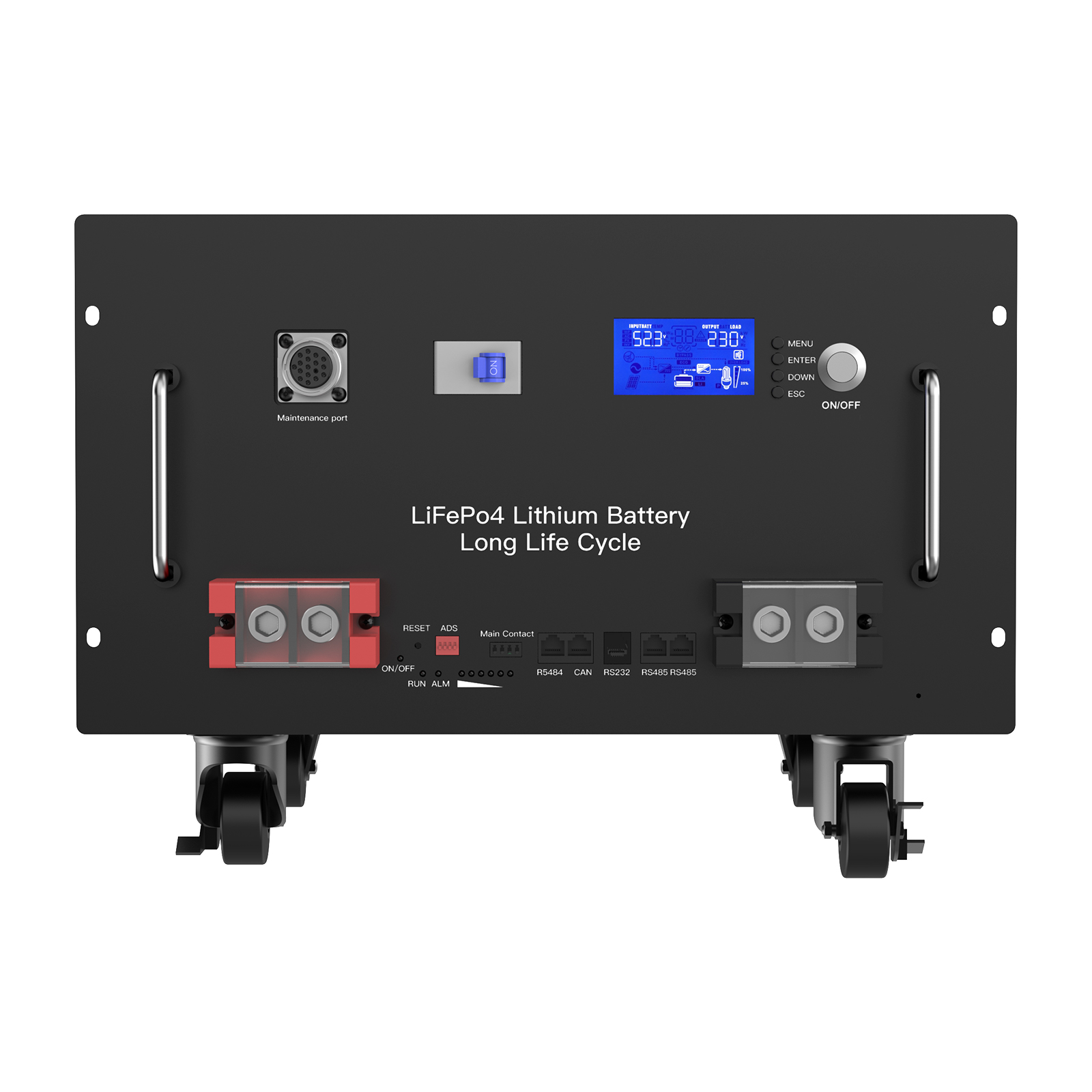

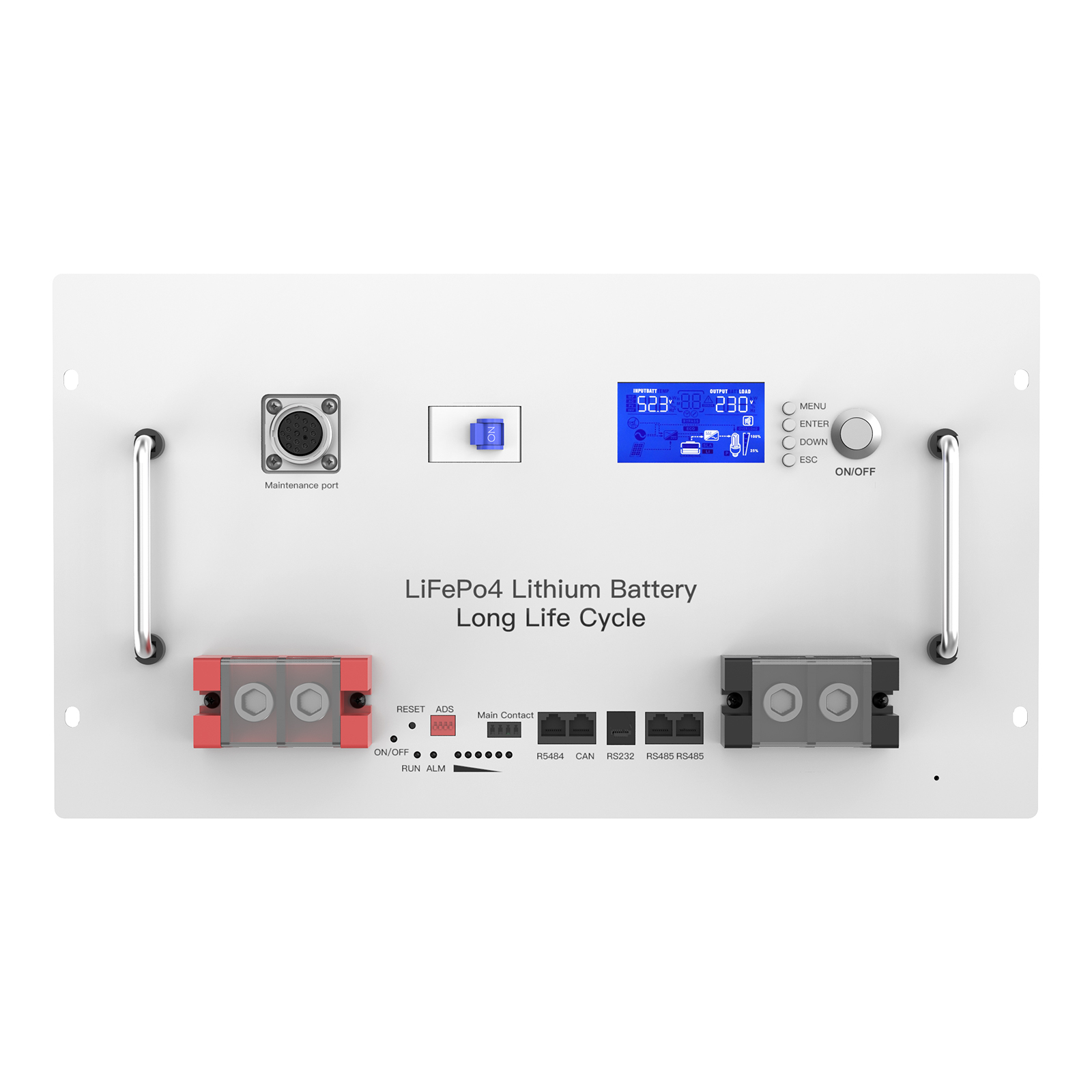

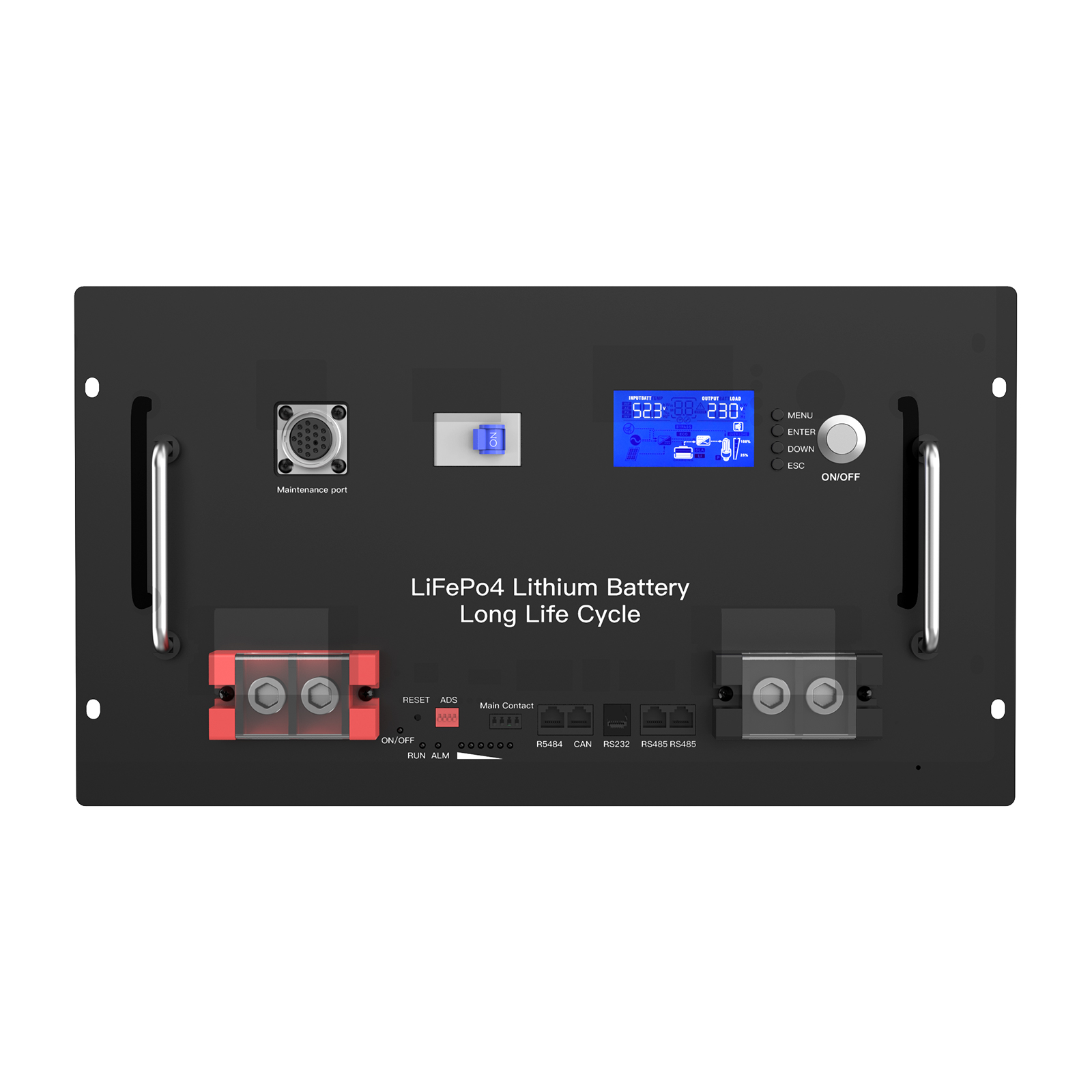

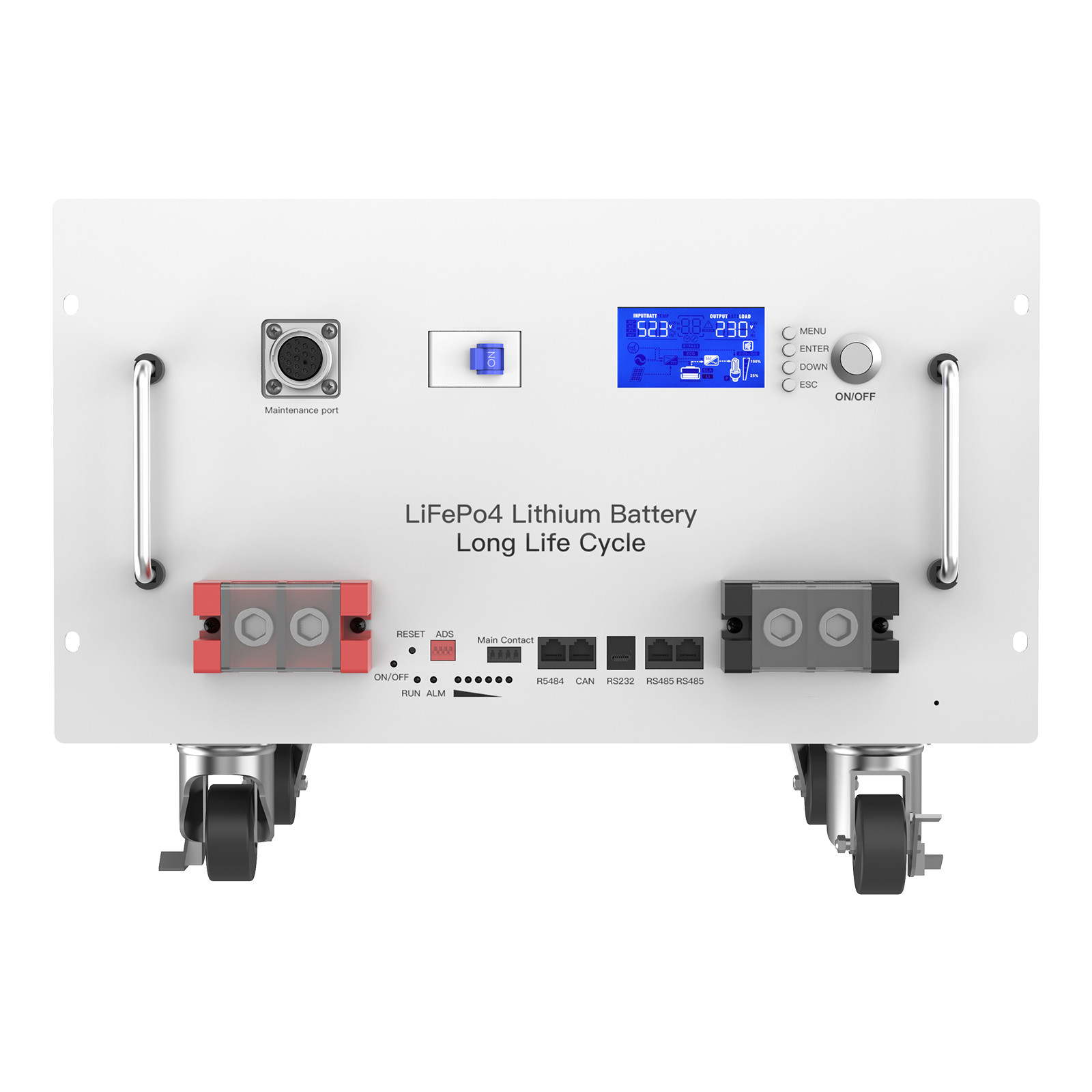

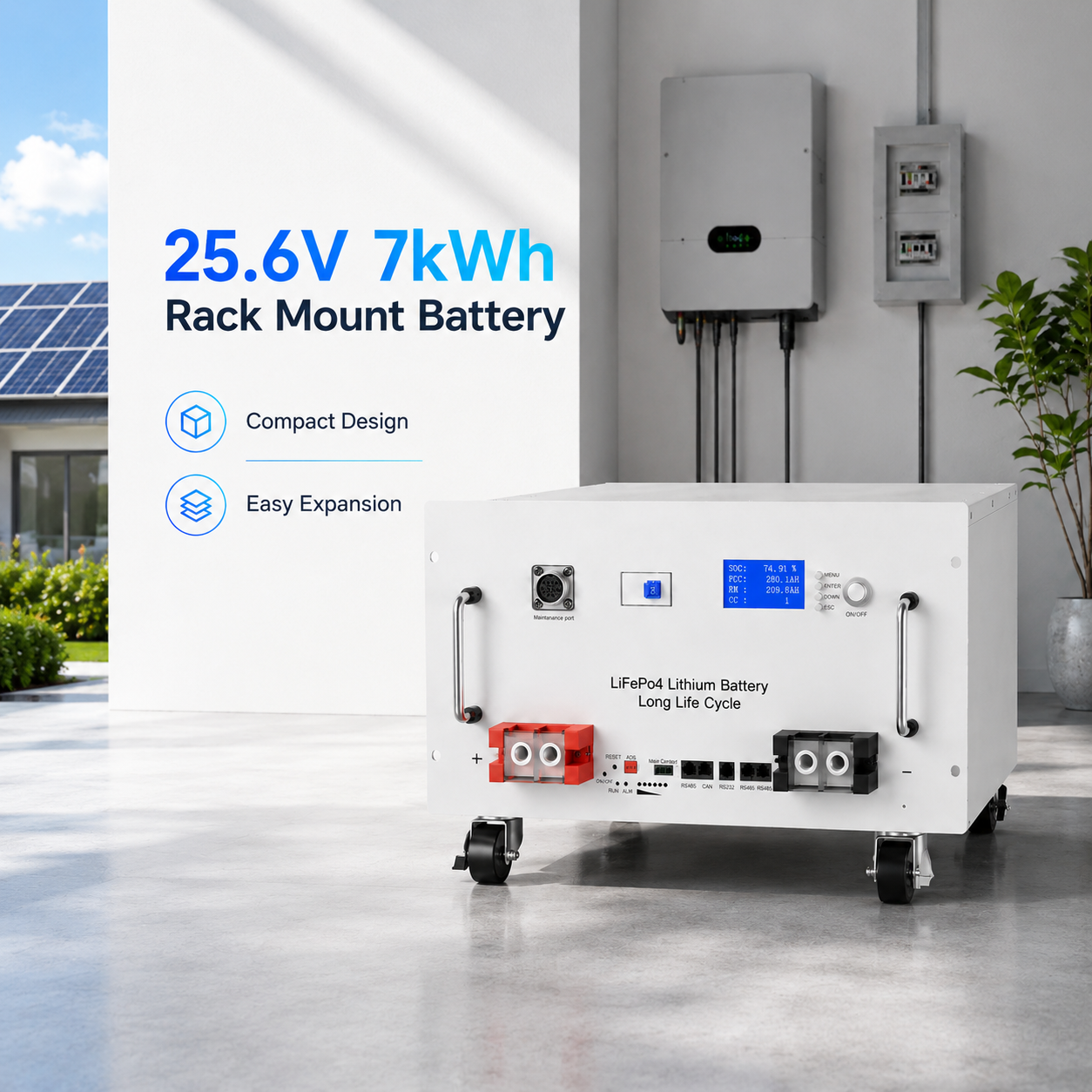

🔋 25.6V 280Ah LiFePO4 Battery Energy Storage System
Designed for residential solar storage and backup power applications, this battery system combines high-capacity LiFePO4 cells, intelligent BMS protection, and flexible communication options to provide reliable energy for homes and businesses.
⭐ Key Features
🔋 High Capacity Energy Storage
- Capacity: 280Ah
- Energy: 7168Wh
- Voltage: 25.6V
- Long lifespan and stable performance
-
🛡️ Intelligent Battery Protection System
Built-in protection module ensures safe charging and discharging.
Protection functions:
- Overcharge protection
- Over-discharge protection
- Over-current protection
- Temperature protection
- Short-circuit protection
📡 Smart Communication & Expansion
Supports intelligent energy management:
- RS485 communication
- RS232 communication
- CAN communication
- Supports inverter communication

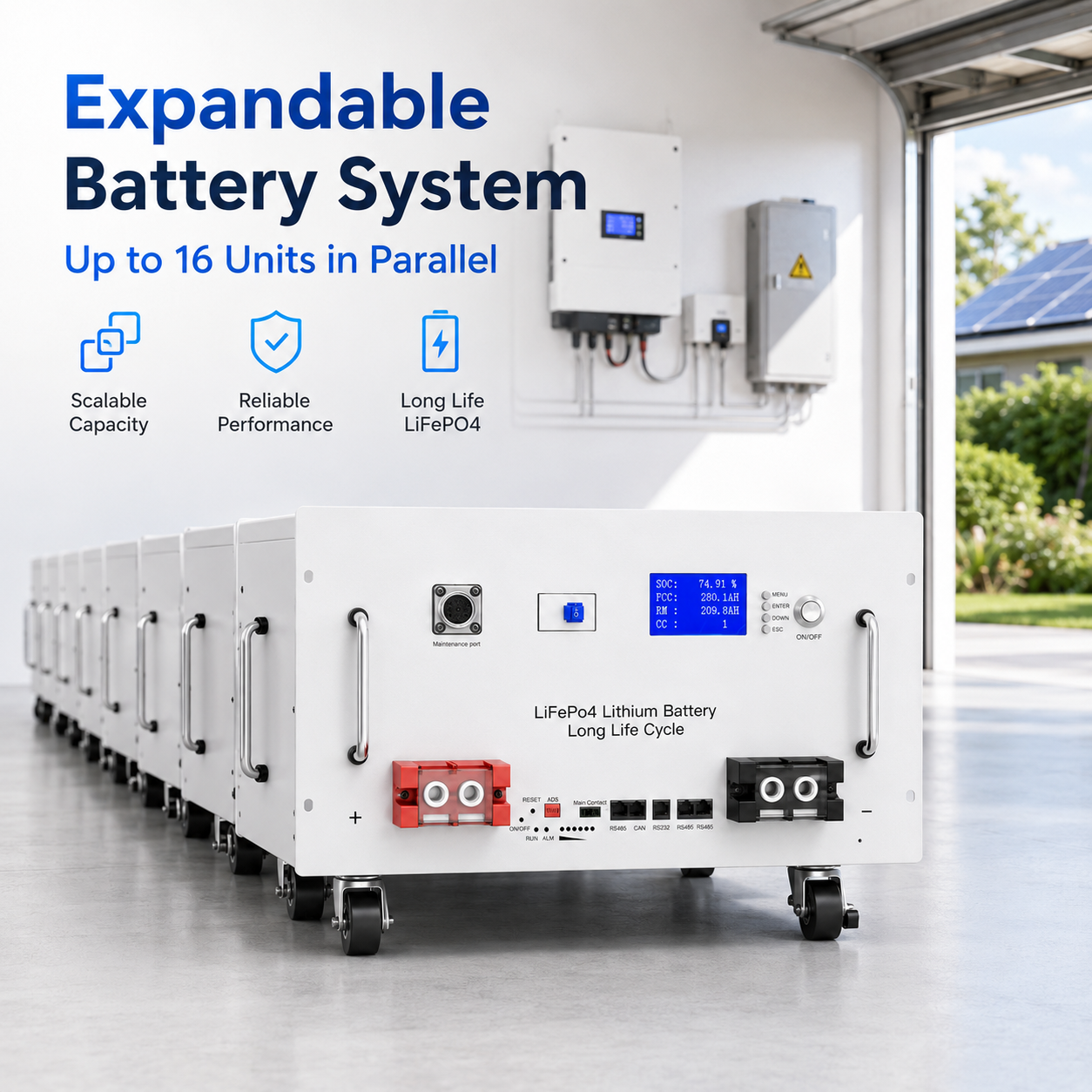

- Up to 16 batteries connected in parallel
⚡ High Performance Output
- Maximum Charging Current: 100A

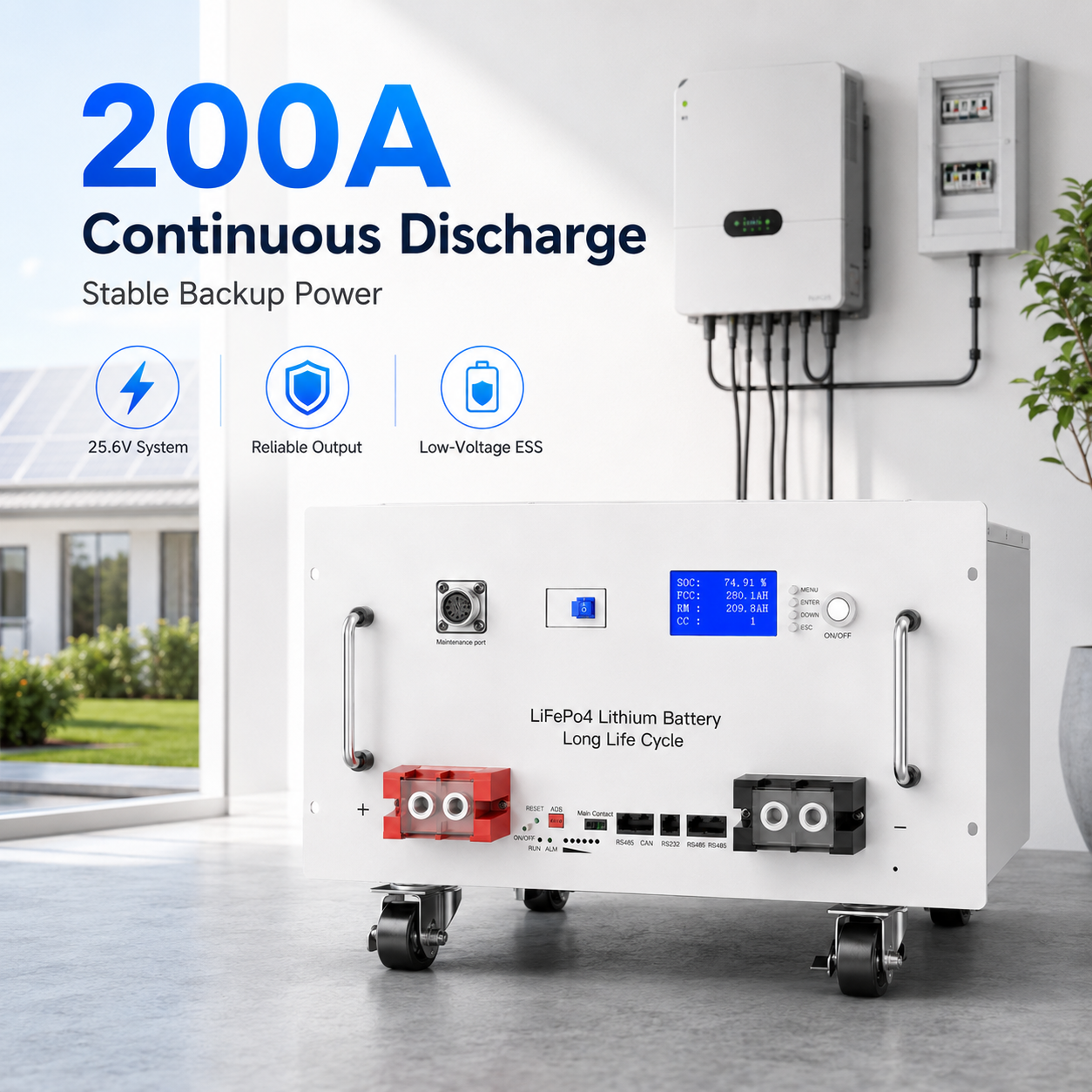

- Maximum Continuous Discharge Current: 200A
- Charging Mode: CC-CV
-
📦 Product Specifications
| Item |
Specification |
| Battery Type |
LiFePO4 Lithium Battery |
| Cell |
HITHIUM LFP 280Ah (3.2V) |

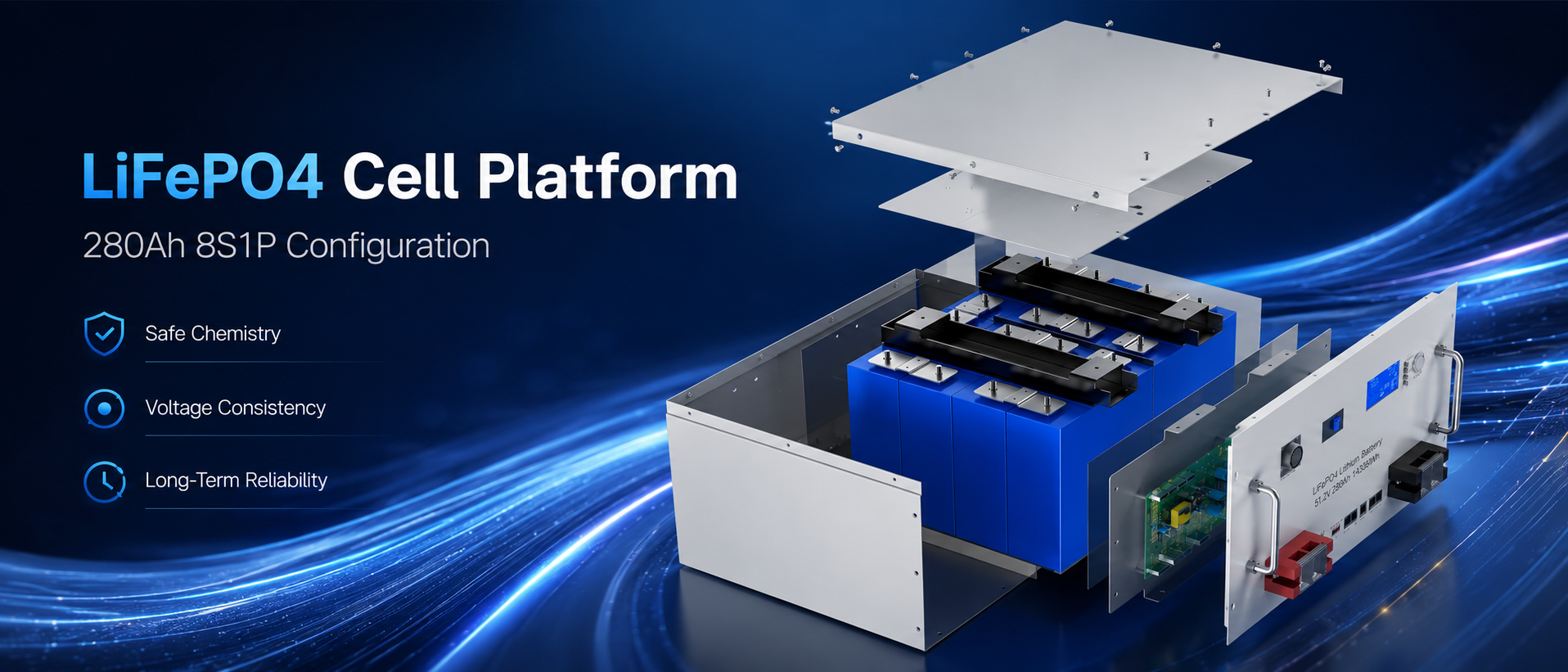

| Configuration |
8S1P |
| Nominal Voltage |
25.6V |
| Capacity |
280Ah |
| Energy |
7.168kWh |
| Charging Voltage |
29.2V |
| Working Voltage |
20V–29.2V |
| Size |
376 × 483 × 267 mm |
| Weight |
Approx. 58kg |
🔧 Safety & Design
Premium LiFePO4 Technology
High-quality lithium iron phosphate cells provide:
- High safety
- Long cycle life
- Excellent thermal stability
Smart Display & Control
Equipped with:
- 3-inch blue LCD display
- Key operation interface
- 6A soft switch
- 200A air circuit breaker
- Maintenance port
☀️ Applications
🏠 Home Energy Storage
Store solar energy and provide backup power during outages.
☀️ Solar Power System
Perfect for residential solar installations.
🚐 Off-Grid Power
Reliable energy solution for remote areas.
🏢 Commercial Backup Power
Supports stable power supply for small businesses.
